Intake Manifold (G1271897): Installation

WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

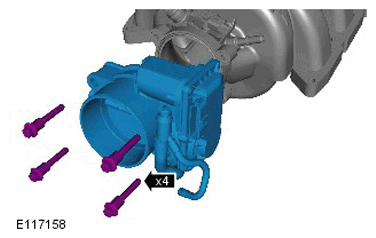

Torque Specifications: 5 Nm

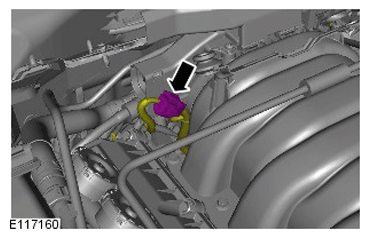

Torque Specifications: 10 Nm

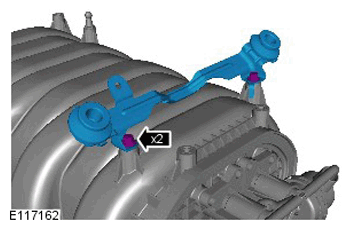

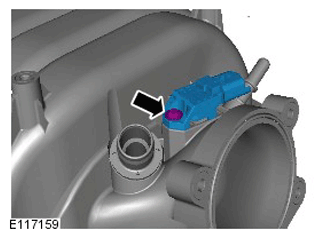

Torque Specifications: 10 Nm

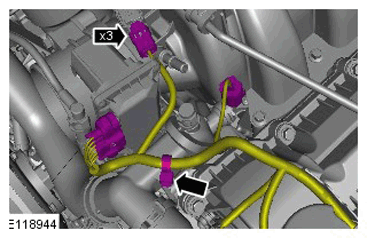

Torque Specifications: 5 Nm

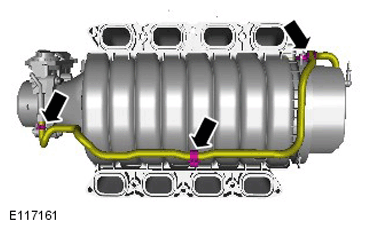

CAUTION: A new O-ring seal is to be installed.

Torque Specifications: 18 Nm

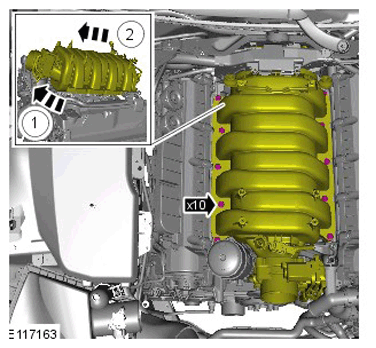

CAUTION:
- Make sure that the mating faces are clean and free of corrosion and foreign material.
- Install new o-ring seals
NOTE: Do not tighten at this stage.
Fig 1: Intake Manifold Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications: 25 Nm

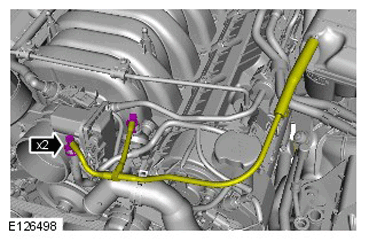

Torque Specifications: 8 Nm

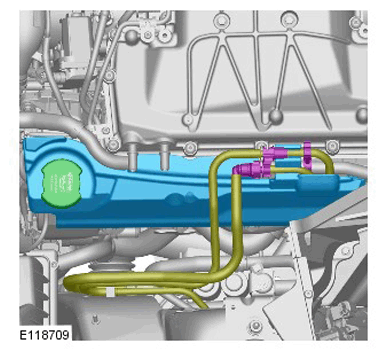

NOTE:
- Do not tighten at this stage.
- Remove and discard the blanking caps.
- Torque Specifications:
  Unions 21 Nm

  Bolts 8 Nm

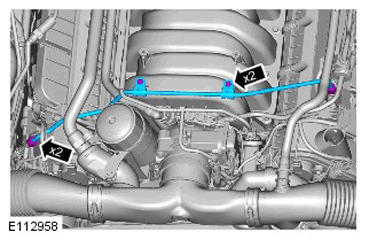

- Torque Specifications: 21 Nm

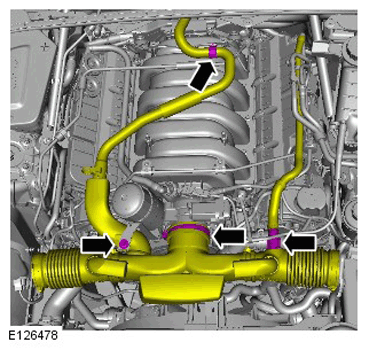

Torque Specifications: 10 Nm
Refer to: ENGINE COVER - V8 5.0L PETROL/V8 S/C 5.0L PETROL .
Lower the vehicle.
Connect the battery ground cable.
Refer to: Battery Disconnect and Connect .
