Exhaust Manifold RH (G1271895): Installation

WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Torque Specifications: 45 Nm
CAUTION: LH illustration shown, RH is similar.

NOTE: Install a new gasket.

Install the special tool.

Special Tool(s): 303-1444-01
CAUTION: LH illustration shown, RH is similar.

NOTE: If a new cylinder head is installed use the special tools in the illustration.

Install the special tool.

Special Tool(s): 303-1444-02
CAUTION:
- Make sure that new bolts are installed.
- LH illustration shown, RH is similar.
NOTE: Install the spacers in the noted position.

Torque Specifications: 10 Nm
CAUTION: LH illustration shown, RH is similar.

Remove the special tool.
CAUTION:
- Make sure that new bolts are installed.
- LH illustration shown, RH is similar.
NOTE: Install the spacers in the noted position.

Torque Specifications: 10 Nm

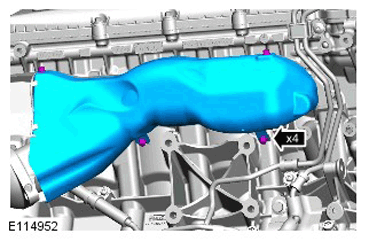

CAUTION: LH illustration shown, RH is similar.

Fig 1: Right Exhaust Manifold Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

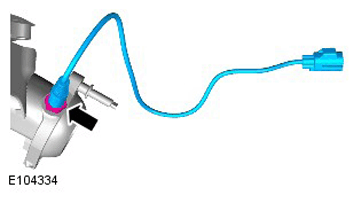

Torque Specifications: 18 Nm
Torque Specifications: 3 Nm
Right-hand drive vehicles
Refer to: STEERING GEAR - RWD (G1875290) .
All vehicles
Refer to: EXHAUST SYSTEM (G1269296) .
Refer to: Battery Disconnect and Connect (414-01, General Procedures).
