Exhaust Manifold LH (G1271894): Installation

All vehicles

1. CAUTION:

   • Make sure that the mating faces are clean and free of foreign material.
   • Make sure the anti-seize compound does not contact the catalyst monitor sensor tip.
   • If accidentally dropped or knocked install a new sensor.
   • Make sure the catalyst monitor sensor wiring harness is not twisted more than 180 degrees and is not in contact with either the exhaust or driveshaft.
   NOTE: If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.

   Torque Specifications: 45 Nm

2. NOTE: Install a new gasket.

   Special Tool(s):  303-1444-01

3. NOTE: If a new cylinder head is installed use the special tools in the illustration.

   Special Tool(s):  303-1444-02

4. CAUTION: Make sure that new bolts are installed.
   NOTE:

   • Install the spacers in the noted position.

   Torque Specifications: 10 Nm

5. Remove the special tool.

6. CAUTION: Make sure that new bolts are installed.
   NOTE: Install the spacers in the noted position.

   Torque Specifications: 10 Nm

7. Fig 1: Left Exhaust Manifold Bolts Tightening Sequence

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque Specifications: 18 Nm

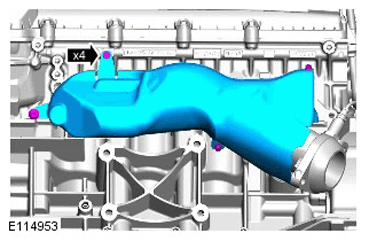

8. Torque Specifications: 3 Nm

10. NOTE: Remove and discard the O-ring seal.
12. Refer to: POWER STEERING PUMP (G1557178) .

    Left-hand drive vehicles

13. Refer to: STEERING GEAR - RWD (G1875290) .

    All vehicles

14. Refer to: EXHAUST SYSTEM (G1269296) .
15. Lower the vehicle.
16. Refer to: Battery Disconnect and Connect (414-01, General Procedures).
