Special Tool(S)

WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
G11285508
 303-1435
Engine Lifting Brackets Rear
G11285509
 303-1436
Engine Lifting Bracket Front
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the engine removed for clarity.
  1. NOTE: This step requires the aid of another technician.

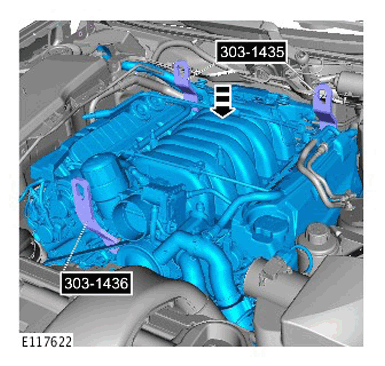

    G11285549
    • Install the lifting chains.
    1. Special Tool(s):  303-1435, 303-1436

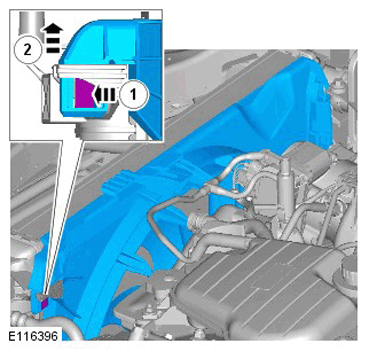

  2. G11285545

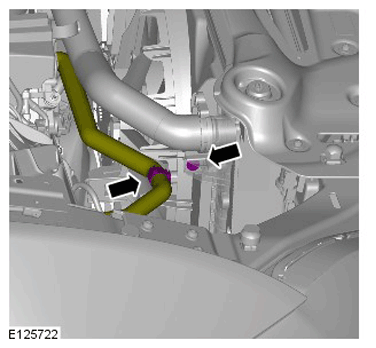

  3. G11285544

    Torque Specifications: 7 Nm

  4. G11285543
  5. G11285542
  6. G11285541

    Torque Specifications: 45 Nm

  7. G11285540

    Torque Specifications: 10 Nm

  8. CAUTION: A new O-ring seal is to be installed.

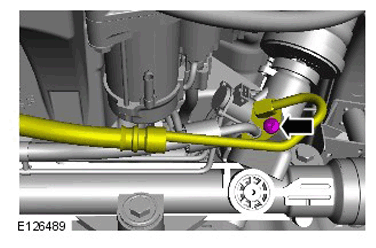

    G11285539

    Torque Specifications: 24 Nm

  9. CAUTION: A new O-ring seal is to be installed.
    G11285054

    Torque Specifications: 18 Nm

  10. Refer to: TRANSMISSION - V8 5.0L PETROL/V8 S/C 5.0L PETROL (G1271948) .
  11. CAUTION: A new O-ring seal is to be installed.

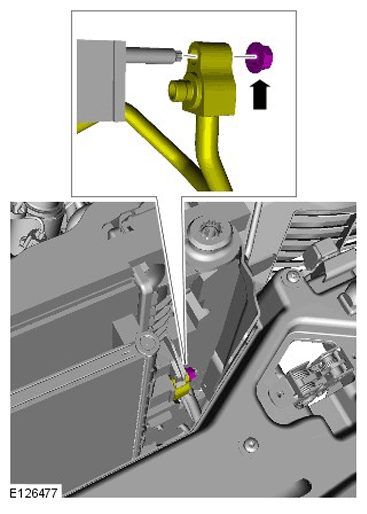

    G11285537

    Torque Specifications: 18 Nm

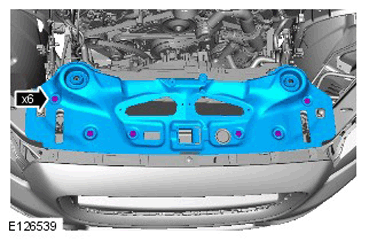

  12. G11285536

    Torque Specifications: 8 Nm

  13. G11284542

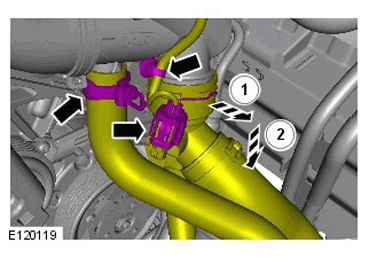

  14. G11284660

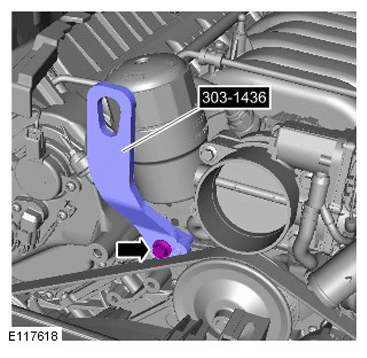

  15. G11285533
    • Special Tool(s):  303-1436
  16. G11284996

    Torque Specifications: 25 Nm

  17. G11285531

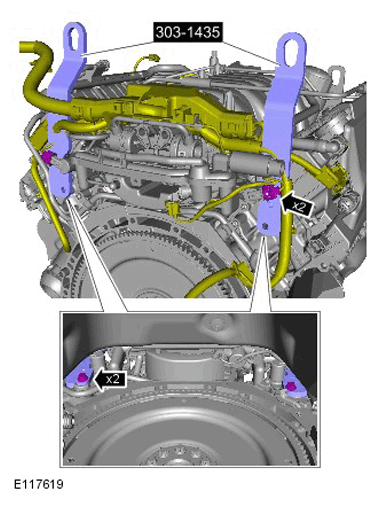

  18. G11285530
    • Special Tool(s):  303-1435

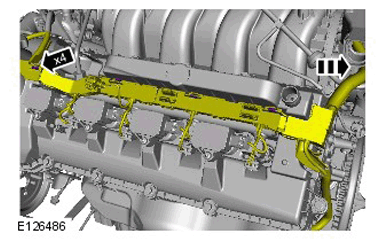

  19. G11285529

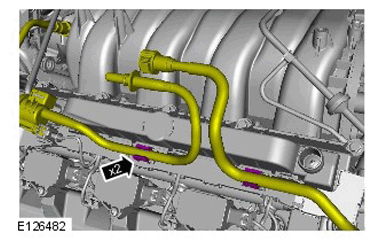

  20. G11285528

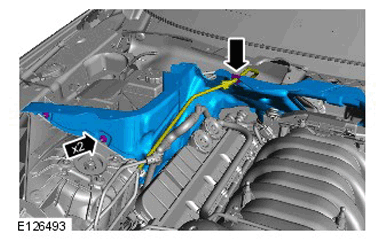

  21. G11285527

    Torque Specifications: 12 Nm

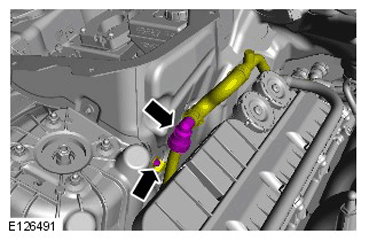

  22. G11285526

    Torque Specifications: 12 Nm

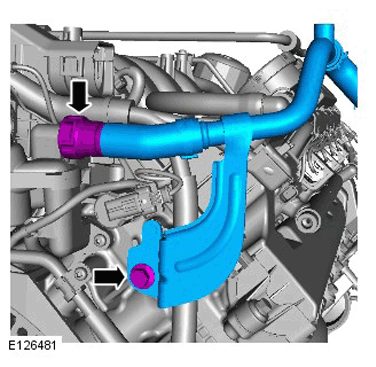

  23. G11285525

    Torque Specifications: 25 Nm

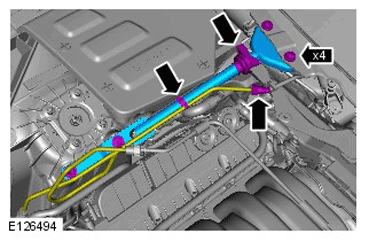

  24. G11285524

    Torque Specifications: 40 Nm

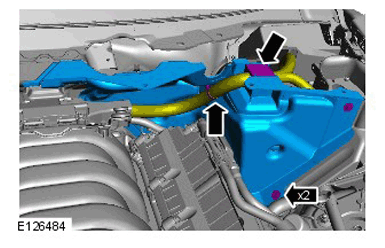

  25. G11285523

    Torque Specifications: 12 Nm

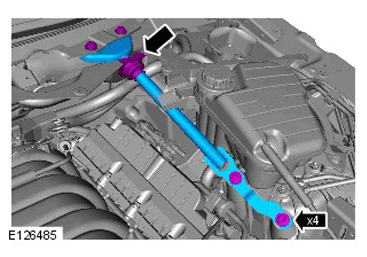

  26. G11285522

    Torque Specifications: 40 Nm

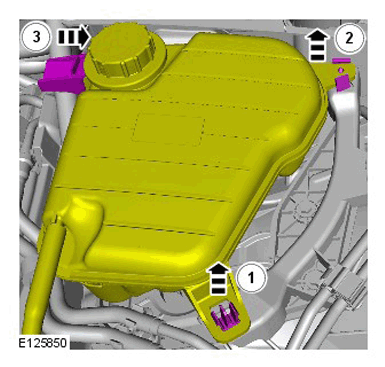

  27. G11283644

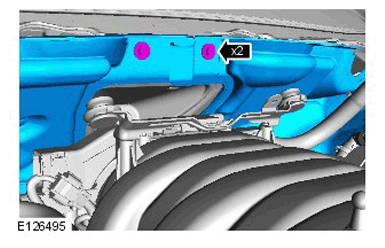

  28. G11285520

    Torque Specifications: 12 Nm

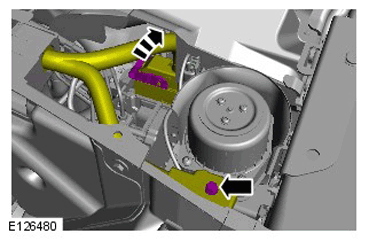

  29. G11285519

    Torque Specifications: 10 Nm

  30. WARNING: Be prepared to collect escaping fluid.
    CAUTION: Make sure that all openings are sealed. Use new blanking caps.

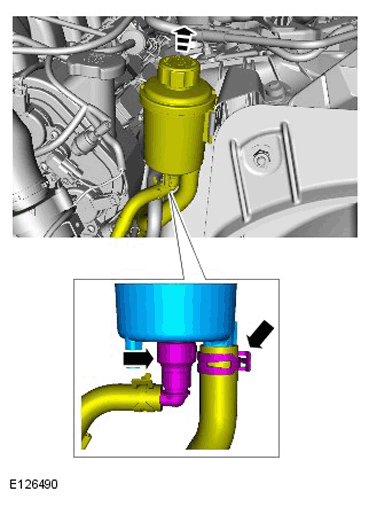

    G11284659

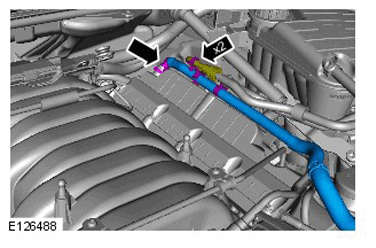

  31. G11285518
  32. G11285087

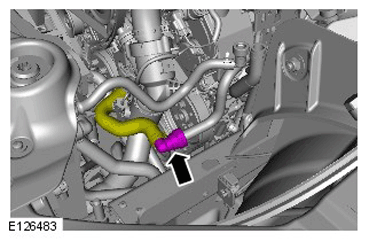

  33. G11285516

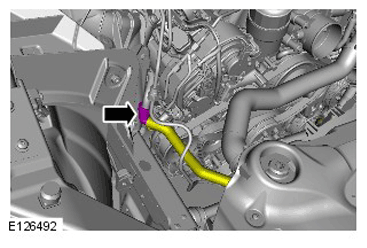

  34. G11285515
  35. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
    G11285091
  36. G11285512

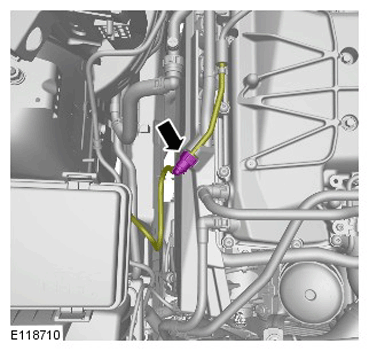

  37. G11285511
  38. G11285086

    Torque Specifications: 10 Nm

  39. Fill and bleed the power steering system.
  40. Refer to: AIR CLEANER RH (G1271880) .

  41. Refer to: AIR CLEANER LH (G1271879) .

  42. Release the 2 clips securing the hood switch to the hood latch.
  43. Refer to: COWL VENT SCREEN .
  44. Refer to: AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
  45. Refer to: COOLING SYSTEM PARTIAL DRAINING, FILLING AND BLEEDING - V8 5.0L PETROL (G1447430) .
  46. Refer to: BATTERY DISCONNECT AND CONNECT .
