Cylinder Head LH (G1271890): Installation

WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: An acceptable flatness of the cylinder head is 0.1mm.

Check cylinder head face for distortion, across the center and from corner to corner.
WARNING: Make sure care is taken when handling the cylinder head gasket.
CAUTION:
- The head gasket must be installed over the cylinder block dowels.
- Make sure that the mating faces are clean and free of foreign material.
NOTE: Install a new cylinder head gasket.
CAUTION: Make sure that new cylinder head bolts are installed.

NOTE: Tighten the bolts in the indicated sequence.

Fig 1: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Install the special tool.
2. Special Tool(s): 303-1492
3. Torque Specifications: 20 Nm
NOTE: Tighten the bolts in the indicated sequence.

Fig 2: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications: 35 Nm
NOTE: Tighten the bolts in the indicated sequence.

Fig 3: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts 1 to 10, a further 90 degrees.
NOTE: Tighten the bolts in the indicated sequence.

Fig 4: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts 1 to 10, a further 120 degrees.
Fig 5: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications: 25 Nm
NOTE: Tighten the bolts in the indicated sequence.

Fig 6: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications: 12 Nm
CAUTION:
- If a new cylinder head has been installed then new tappets must be installed.
- If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
Lubricate the valve tappets with clean engine oil.
Torque Specifications: 12 Nm
Torque Specifications: 12 Nm
CAUTION: Install the new seals.

Torque Specifications: 10 Nm
NOTE: Engine shown removed for clarity.

Torque Specifications: 12 Nm
CAUTION: Install new o-ring seals

Torque Specifications: 12 Nm
Torque Specifications: 20 Nm
Torque Specifications: 20 Nm

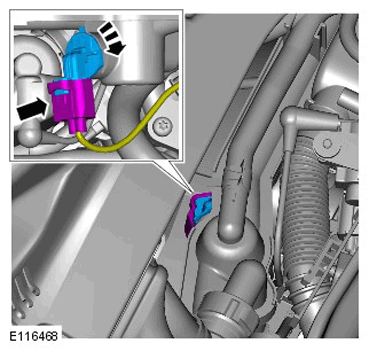

Refer to: EXHAUST MANIFOLD LH (G1271894) .
Refer to: CAMSHAFT LH (G1271885) .
Refer to: Secondary Bulkhead Panel LH .
Refer to: INTAKE MANIFOLD (G1271897) .
Refer to: BATTERY DISCONNECT AND CONNECT .
