Engine Oil Draining And Filling (G1280231): Draining

WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.

CAUTION: Correct installation of the oil filler cap can be obtained by tightening the cap until hard stop.

NOTE:

Clean the components general area prior to dismantling.
Some variation in the illustrations may occur, but the essential information is always correct.

CAUTION: Make sure the engine is warm.

Start the engine and allow to run for 10 minutes, stop the engine.
Refer to: ENGINE COVER - V8 5.0L PETROL/V8 S/C 5.0L PETROL .
- Loosen the element cover 4 complete turns to allow engine oil to drain from the filter cover.
- Make sure that the O-ring seal is exposed.
NOTE: Allow 10 minutes for the engine oil to drain from the oil filter housing.
NOTE: Remove and discard the O-ring seal.
Remove and discard the oil filter element.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: Air Deflector .

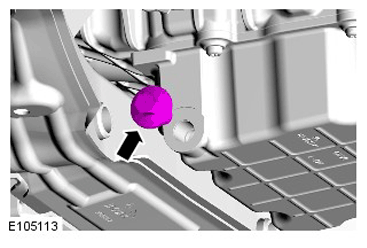

CAUTION:
- Be prepared to collect escaping oil.
- Allow at least 10 minutes for the engine oil to drain.
NOTE: Discard the sealing washer.
