Cylinder Block
WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
The cylinder block is a 90 degree configuration with cast-in iron cylinder liners and an open deck die-cast coolant jacket. The low volume coolant jacket gives good warm-up times and low piston noise levels. The longitudinal flow design of the coolant jacket, with a single cylinder head coolant transfer port in each bank, provides good rigidity and head gasket sealing.

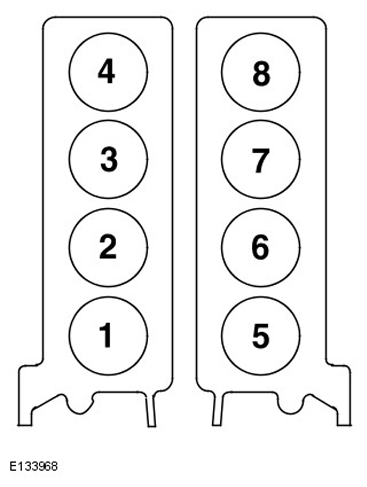

The cylinders are numbered as shown below.
DIN standard cylinder numbering
DIN cylinder firing order 1, 5, 4, 2, 6, 3, 7, 8
Engine Data Location
| ITEM | DESCRIPTION |
|---|---|
| 1 | Engine data location |
Engine data is marked on the cylinder block at the rear of the RH (right-hand) cylinder bank.
