Removal And Installation: Installation

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
G06387920
 303-021
Engine support bracket
G11285508
 303-1435
Engine Lifting Brackets Rear
G11285509
 303-1436
Engine Lifting Bracket Front
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the engine removed for clarity.

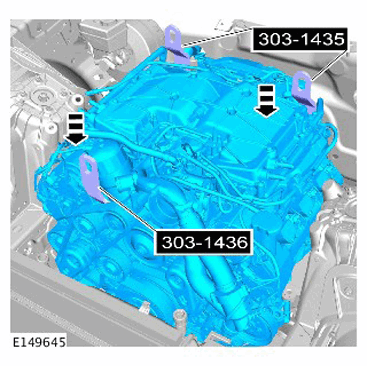

  1. NOTE: This step requires the aid of another technician.
    G11287303

    Install the engine.

    Special Tool(s):  303-1435, 303-1436

  2. G11287264

    Install the special tool.

    Special Tool(s):  303-021

  3. G11285541

    Torque Specifications: 45 Nm

  4. G11287262

    Torque Specifications: 48 Nm

  5. G11287261

    Torque Specifications: 6 Nm

  6. G11287260

    Torque Specifications: 12 Nm

  7. G11287259

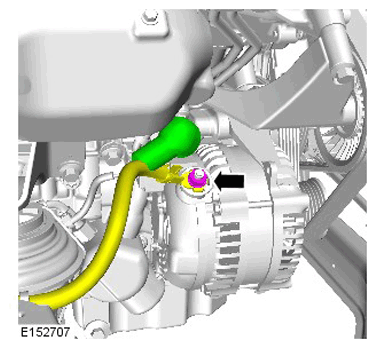

  8. G11287258

    Torque Specifications: 12 Nm

  9. G11284542

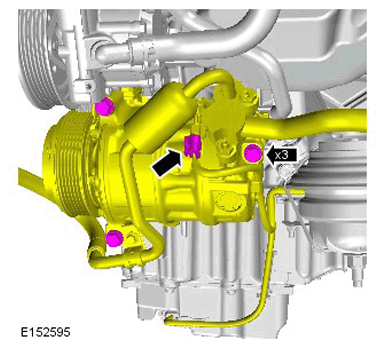

  10. G11287256

    Torque Specifications: 25 Nm

  11. G11287255

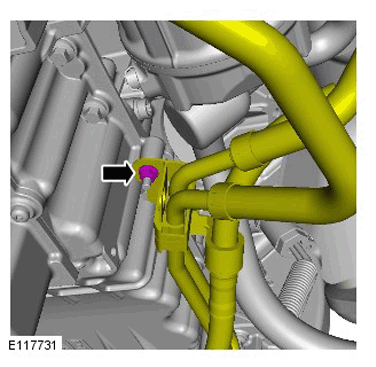

  12. G11287254

    Torque Specifications: 11 Nm

  13. G11287253
  14. G11287252

    Remove special tool.

    Special Tool(s):  303-1436

  15. G11284996

    Torque Specifications: 25 Nm

  16. G11286300
  17. G11287249

    Remove special tool.

    Special Tool(s):  303-1435

  18. G11287248

    Torque Specifications: 12 Nm

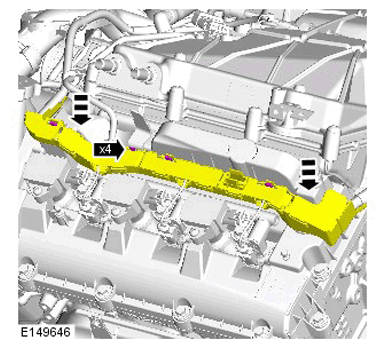

  19. G11287321
  20. G11287246
  21. G11286178
  22. G11286286
  23. G11286285
  24. G11285516
  25. G11285515
  26. CAUTION: Make sure that new sealing washers are installed.
    G11287240

    Torque Specifications: 25 Nm

  27. G11284659
  28. G11287238
  29. G11287237
  30. Refer to: Vehicles With: 8HP70 8-Speed Transmission Installation (Installation).
  31. Refer to: COOLING FAN MOTOR AND SHROUD (G1557001) (Removal and Installation).
  32. Refer to: Secondary Bulkhead Panel RH (Removal and Installation).
  33. Refer to: HOOD (Removal and Installation). .
  34. Refer to: BATTERY DISCONNECT AND CONNECT .
  35. Refer to: COOLING SYSTEM PARTIAL DRAINING, FILLING AND BLEEDING (G1556999) .
  36. Refer to: POWER STEERING PUMP .
