Removal And Installation: Removal

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
G06387920
 303-021
Engine support bracket
G11285508
 303-1435
Engine Lifting Brackets Rear
G11285509
 303-1436
Engine Lifting Bracket Front
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the engine removed for clarity.
  1. Refer to: BATTERY DISCONNECT AND CONNECT .
  2. Refer to: HOOD (Removal and Installation).
  3. Refer to: COOLING SYSTEM DRAINING, FILLING AND BLEEDING (G1557006) . (General Procedures)
  4. Refer to: AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING . (General Procedures) .
  5. Refer to: Secondary Bulkhead Panel RH (Removal and Installation).
  6. Refer to: COOLING FAN MOTOR AND SHROUD (G1557001) (Removal and Installation).
  7. Refer to: Vehicles With: 8HP70 8-Speed Automatic Transmission Removal (AWD) (Removal).
  8. Refer to: FRONT HALFSHAFT LH (Removal and Installation). .
  9. Refer to: Front Halfshaft RH (Removal and Installation).

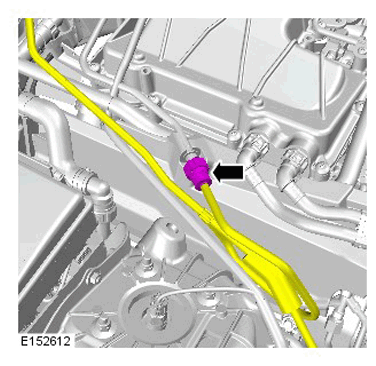

  10. G11287237
  11. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
    CAUTION: Be prepared to collect escaping fuel.

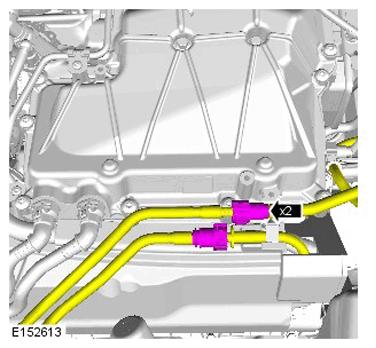

    G11287238
  12. Siphon the fluid from the power steering reservoir.
  13. CAUTION: Be prepared to collect escaping fluids.
    G11284659
  14. WARNING: Be prepared to collect escaping fluids.
    NOTE: Discard the sealing washers.

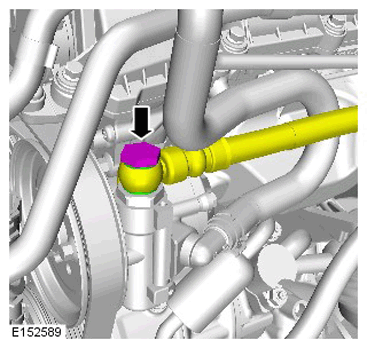

    G11287240
  15. CAUTION: Be prepared to collect escaping coolant.
    G11285515
  16. CAUTION: Be prepared to collect escaping coolant.
    G11285516
  17. CAUTION: Be prepared to collect escaping coolant.

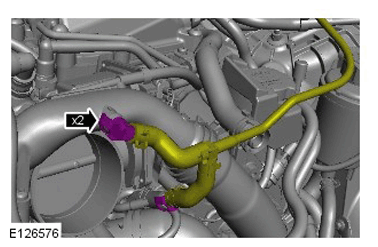

    G11286285
  18. CAUTION: Be prepared to collect escaping coolant.

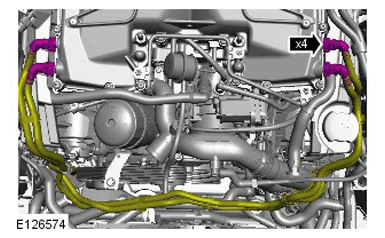

    G11286286
  19. CAUTION: Be prepared to collect escaping coolant.
    G11286178
  20. CAUTION: Be prepared to collect escaping coolant.

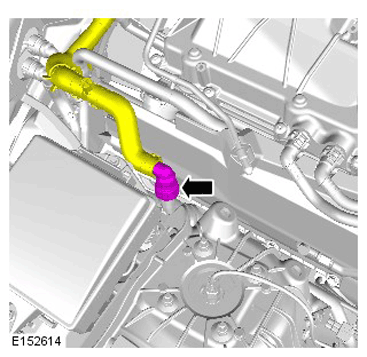

    G11287246

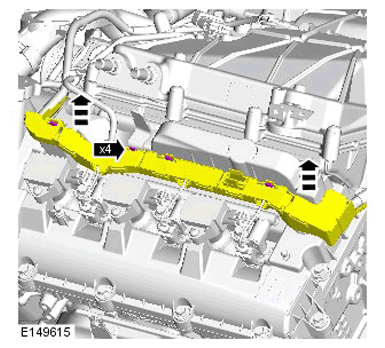

  21. G11287247

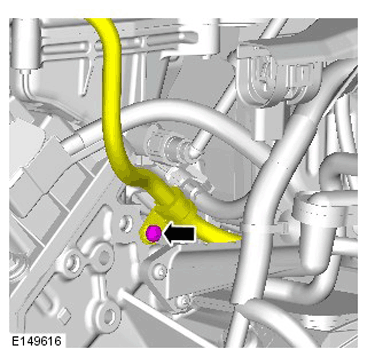

  22. G11287248

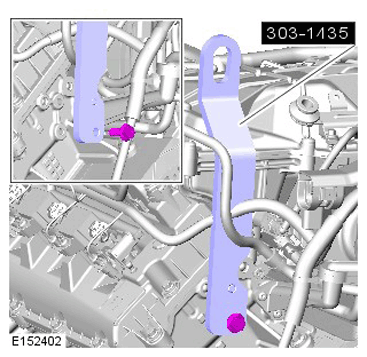

  23. G11287249

    Special Tool(s):  303-1435

    Torque Specifications: 25 Nm

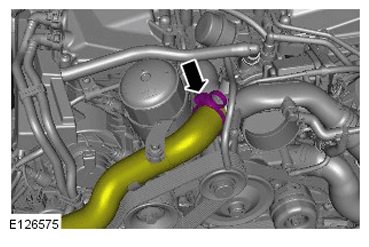

  24. G11286300
  25. G11284996
  26. G11287252

    Special Tool(s):  303-1436

    Torque Specifications: 25 Nm

  27. CAUTION: Be prepared to collect escaping coolant.

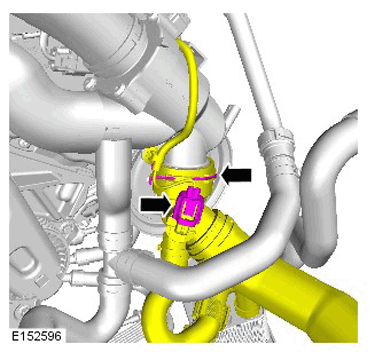

    G11287253

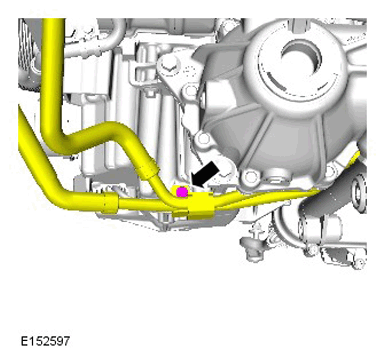

  28. G11287286
  29. G11284542
  30. NOTE: Remove and discard the O-ring seal.
    G11285537
  31. NOTE: Remove and discard the O-ring seal.

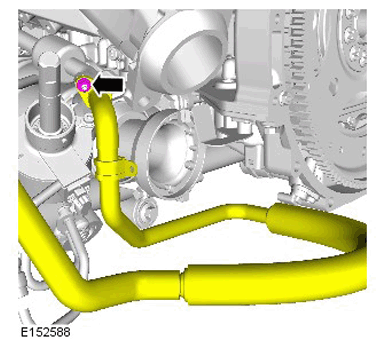

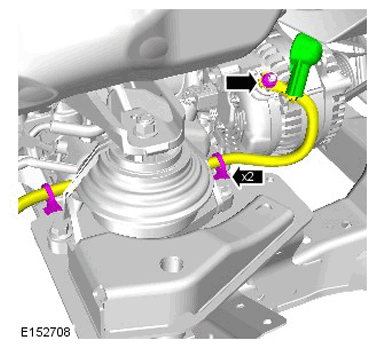

    G11287289

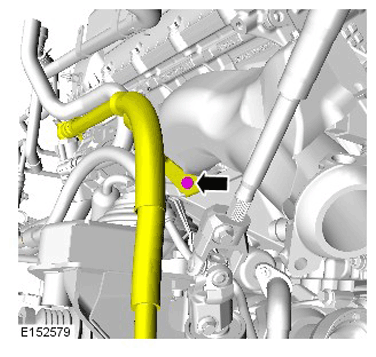

  32. G11287290
  33. G11287291

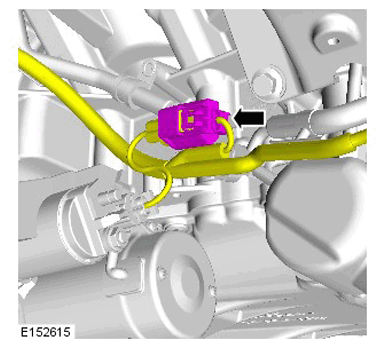

  34. G11287259

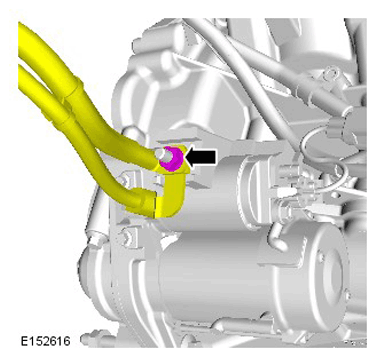

  35. G11287260
  36. G11287261

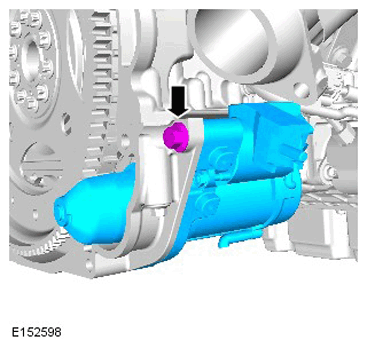

  37. G11287262
  38. NOTE: Remove and discard the O-ring seal.
    G11284254

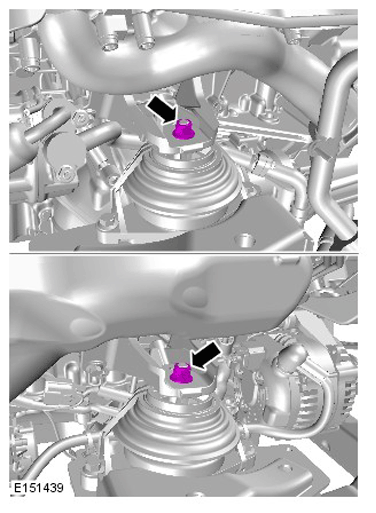

  39. G11287297
  40. G11287264

    Remove special tool.

    Special Tool(s):  303-021

  41. NOTE: This step requires the aid of another technician.

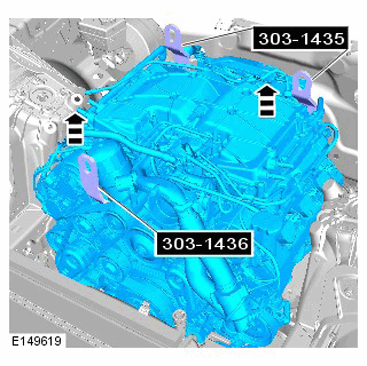

    G11287265

    Using a suitable tool, remove the engine.

    Special Tool(s):  303-1435, 303-1436
