Major Structural Components

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

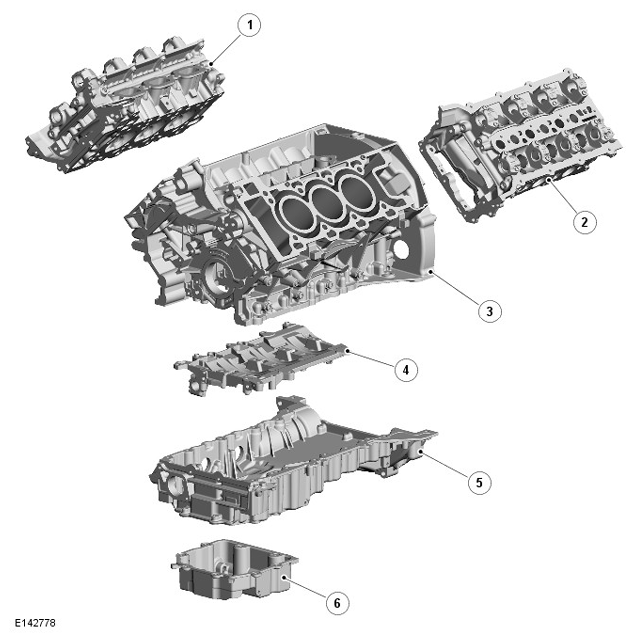

G11286358
ITEM DESCRIPTION
1 Right cylinder head (bank 1)
2 Left cylinder head (bank 2)
3 Cylinder block
4 Windage tray
5 Oil pan body
6 Oil pan
