Transmission - V6 S/C 3.0L Petrol/V8 5.0L Petrol/V8 S/C 5.0L Petrol (G1551362): Removal

WARNING: This page is about a different car, the 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.
  • Make sure that all openings are sealed. Use new blanking caps.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. G11284044
  3. G11284045
  4. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  5. Refer to: Engine Cover - V8 5.0L Petrol/V8 S/C 5.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).

  6. Refer to: Cowl Vent Screen (Front End Body Panels, Removal and Installation).

  7. G11292025
  8. G11292026
  9. G11292027

    Special Tool(s):  303-1435

    Torque Specification: 25 Nm

  10. G11287264

    Special Tool(s):  303-021

  11. Exhaust system, refer to REMOVAL AND INSTALLATION (3.0L), or REMOVAL AND INSTALLATION (5.0L).
  12. G11286657
  13. G11286674

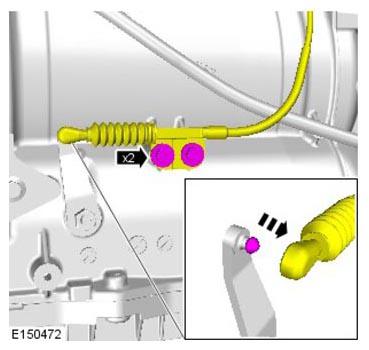

  14. G11292031

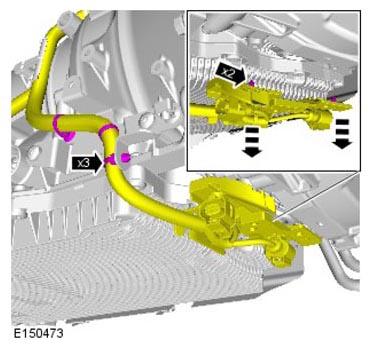

  15. G11292032
  16. G11292033

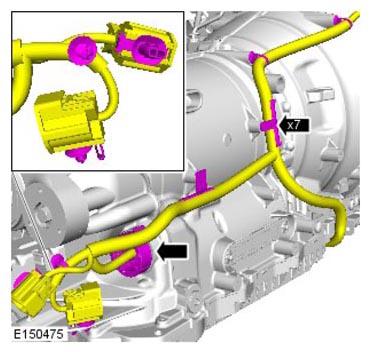

  17. G11292034
  18. WARNING: Be prepared to collect escaping fluids.
    NOTE: Remove and discard the O-ring seals.
    G11291983
  19. G11291671
  20. G11291670
  21. CAUTION: Only rotate the crankshaft clockwise.
    G11291672
    • Mark the torque converter and flexplate when removing the last torque converter bolt. Make sure that the alignment mark is visible through the inspection hole.
  22. NOTE: Mark the position of the driveshaft on the transmission flange.
    G11284047
  23. CAUTION: Discard the bolts.
    G11284048

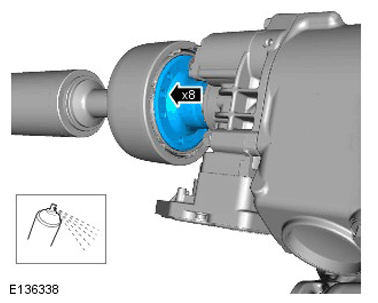

  24. NOTE: Use penetrating oil - spray through the driveshaft bolt holes as shown.
    G11284049

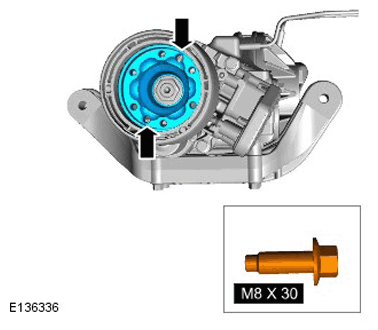

  25. NOTE: Driveshaft joint shown removed for clarity.
    G11284050

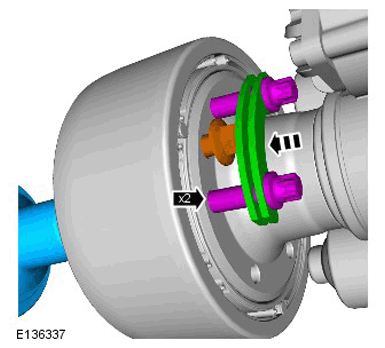

  26. NOTE:
    • Two washers must be installed to the assist in the removal of the driveshaft.
    • Alternate tighten the bolts until the movement of the driveshaft joint is detected.
    G11284051
  27. NOTE: Repeat above steps until the driveshaft joint is fully released.
    G11284051

    Remove the bolts, turn the propshaft and repeat the above step at the other unthreaded hole.

  28. CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.
    G11284053

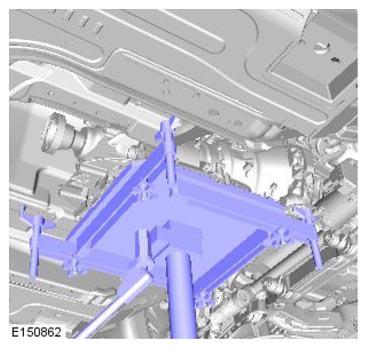

  29. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    G11291995

    Using a suitable stand, support the transmission.

    General Equipment:  Transmission jack

  30. G11291676
  31. G11291680
  32. G11291681
  33. WARNING:
    • This step requires the aid of another technician.
    • Make sure that the transmission is secured with suitable retaining straps.
    CAUTION:
    • Care must be taken to avoid damaging the surrounding components.
    • Make sure that the torque converter remains in the transmission.
    NOTE: Secure the torque converter to the transmission using suitable cable ties.
    G11291682

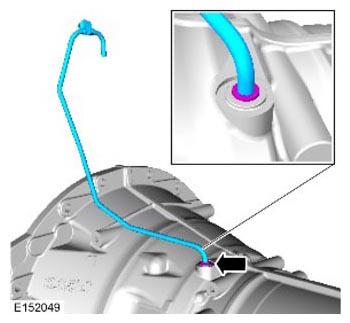

  34. G11292051
  35. NOTE: Do not disassemble further if the component is removed for access only.
    G11292003

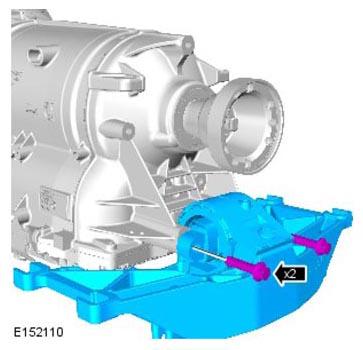

  36. G11292053

Installation  , to install transmission, refer to TRANSMISSION - V6 S/C 3.0L PETROL/V8 5.0L PETROL/V8 S/C 5.0L PETROL (G1551364) .
