Input Shaft Seal (G1571595): Installation

WARNING: This page is about a different car, the 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • Install a new seal.
    • Care must be taken to avoid damage to the seal register and running surface.

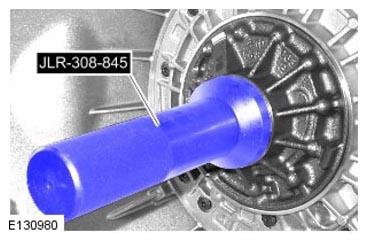

    G11291831

    Special Tool(s):  JLR-308-845

  2. G11291832

    Special Tool(s):  307-613

  3. CAUTION: Make sure the torque converter is fully located into the oil pump drive.
    G11291833
  4. Refer to:

    TRANSMISSION - V6 3.0L PETROL (G1373028)  (Installing).

    TRANSMISSION - V6 S/C 3.0L PETROL/V8 5.0L PETROL/V8 S/C 5.0L PETROL (G1551364)  (Installing).

    TRANSMISSION - V8 5.0L PETROL/V8 S/C 5.0L PETROL (G1271950)  (Installing)

  5. Refer to: Battery Disconnect and Connect (General Procedures).
