Extension Housing Seal - V6 S/C 3.0L Petrol/V8 5.0L Petrol/V8 S/C 5.0L Petrol (G1571598): Removal

WARNING: This page is about a different car, the 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

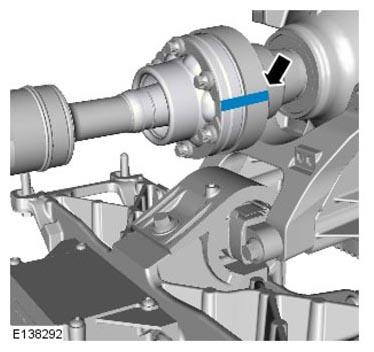

  3. NOTE: Mark the position of the driveshaft on the transmission flange.
    G11291841
  4. CAUTION:
    • Make sure that the driveshaft is supported with suitable retaining straps.
    • Discard the bolts.
    G11291842

    Tie aside with a suitable tie strap.

  5. Refer to TRANSMISSION SUPPORT INSULATOR - V6 3.0L PETROL/V6 S/C 3.0L PETROL/V8 5.0L PETROL/V8 S/C 5.0L PETROL (G1271945)  (Removal and Installation).

  6. CAUTION: Discard the nut.
    G11291843

    Special Tool(s):  205-053

  7. G11291844

    Special Tool(s):  303-D121

  8. CAUTION: Discard the seal.
    G11291845

    Special Tool(s):  100-012, 100-012-01, 308-375
