Transmission Control Module (TCM) And Main Control Valve Body (G1551381): Removal

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Be prepared to collect escaping fluids.

CAUTION: Make sure all suitable safety precautions are taken to protect the TCM and main control valve body electrical connector pins against electrostatic discharge.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

Refer to: TRANSMISSION FLUID PAN, GASKET AND FILTER (G1551382) .

Vehicles with Stop/Start

CAUTION: Take precautions to avoid any electrostatic charging, which could damage this component.
CAUTION: Remove and discard the O-ring seals.

All vehicles

CAUTION:
- Take precautions to avoid any electrostatic charging, which could damage this component.
- Discard the bolts.
WARNING: Be prepared to collect escaping fluids.

CAUTION: Discard the bolt.
NOTE: Note the orientation of the component prior to removal.

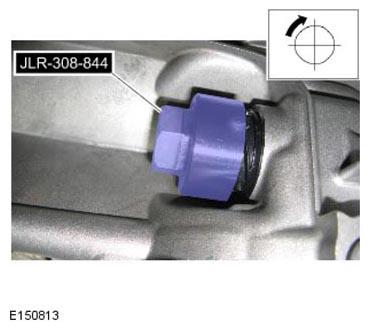

Special Tool(s): JLR-308-844
CAUTION: Discard the bolts.
NOTE: Note the position of the manual park brake release.
