Transmission ASSEMLY Removal (G1551385): Removal

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.
  1. Refer to: BATTERY DISCONNECT AND CONNECT (General Procedures).
  2. Refer to: ENGINE COVER - V8 5.0L PETROL/V8 S/C 5.0L PETROL (Interior Trim and Ornamentation, Removal and Installation).
  3. Refer to: COWL VENT SCREEN (Front End Body Panels, Removal and Installation).
  4. G11292025
  5. G11292026
  6. G11292027
    • Special Tool(s):  303-1435
    • Torque Specification: 40 Nm
  7. G11287264

    Special Tool(s):  303-021

  8. Refer to: Front Driveshaft - AWD (Removal and Installation).
  9. Refer to: Exhaust System - AWD - REMOVAL AND INSTALLATION (V6 S/C 3.0L).
  10. G11286657
  11. G11286674
  12. CAUTION:
    • Be prepared to collect escaping fluids.
    • Remove and discard the O-ring seals.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11291983
  13. G11292264
  14. G11292265
  15. NOTE: This step is only required if a new component is installed.
    G11292004
  16. CAUTION: Discard the bolt.
    G11292267
  17. G11291670
  18. CAUTION:
    • Only rotate the crankshaft clockwise.
    • Discard the bolts.
    G11292269
  19. G11284090
  20. G11284094
    CAUTION: Secure with a cable tie.
  21. G11284091
  22. G11284092
  23. CAUTION: Discard the nuts.
    G11284093
  24. CAUTION: Discard the bolts.
    NOTE: Mark the position of the driveshaft on the transmission flange.
    G11284095
  25. CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.
    NOTE:
    • Make sure that the special tool is correctly installed to the recess on the driveshaft.
    • Using a suitable hammer and drift, make sure that you only hit the corner edges of the special tool to remove the driveshaft.
    G11284096

    Special Tool(s):  205-932

  26. G11292093
    CAUTION: Remove the cable tie.
  27. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    G11292278

    Using a suitable hydraulic jack, support the transmission.

    General Equipment:  Transmission jack

  28. G11292279
  29. CAUTION: Make sure that the transmission is lowered to the value indicated in the illustration.
    G11292280
  30. NOTE: Secure with cable ties.
    G11292281
  31. G11292282
  32. G11292283
  33. NOTE: Secure with cable ties.
    G11292284
  34. G11292285
  35. G11292286
  36. WARNING: This step requires the aid of another technician.
    CAUTION:
    • Care must be taken to avoid damaging the surrounding components.
    • Make sure that the torque converter remains in the transmission.
    NOTE: Secure the torque converter to the transmission using suitable cable ties.
    G11292287

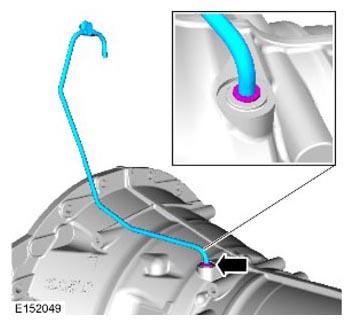

  37. CAUTION: Always plug any open connections to prevent contamination.
    G11292288
  38. NOTE: Do not disassemble further if the component is removed for access only.
    G11292003
  39. G11292290
  40. G11292291
  41. G11292292
