Transmission ASSEMLY Installation (G1551386): Installation

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.
  1. NOTE: This step is only required if a new component is installed.
    G11292073
  2. NOTE: Make sure that the torque converter is fully engaged to the transmission.
    G11291833
  3. CAUTION: A new O-ring seal is to be installed.
    NOTE:
    • This step is only required if previously removed.
    • Clean all the mating faces and reusable parts thoroughly and check for damage.

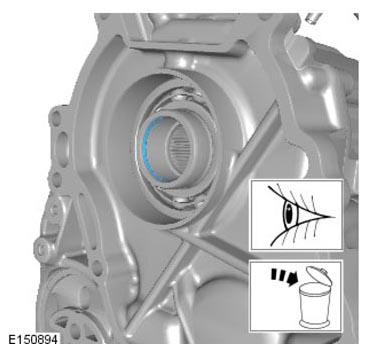

    G11292297
    • Lubricate input shaft splines with 'Weicon TL7391' grease.

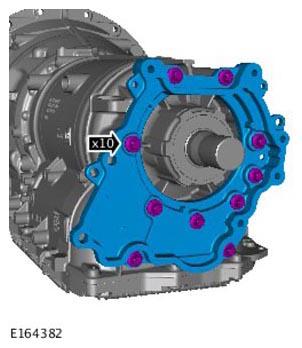

  4. G11292292

    Torque Specification: 43 Nm

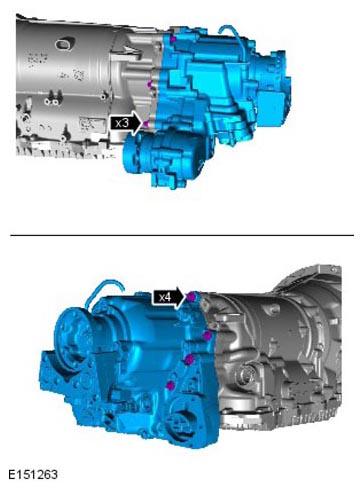

  5. G11292291

    Torque Specification: 48 Nm

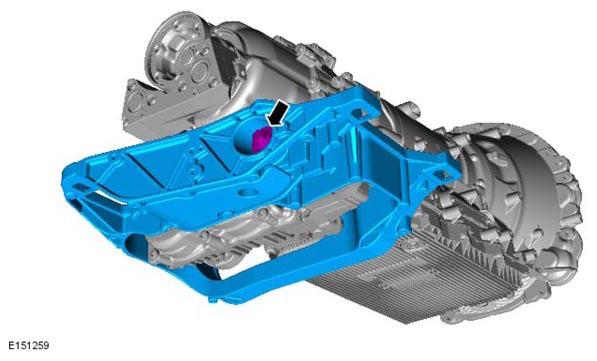

  6. NOTE: This step is only required if previously removed.
    G11292290

    Torque Specification: 133 Nm

  7. NOTE: This step is only required if a new component is installed.
    G11292003

    Torque Specification: 12 Nm

  8. CAUTION: To prevent water ingress and subsequent transmission damage, make sure that the breather is fully pushed home into the transmission casing. The white line around the circumference of the pipe should not be visible when correctly installed.
    NOTE: Remove and discard the blanking caps.
    G11292051
  9. WARNING:
    • Make sure that the transmission is secured with suitable retaining straps.
    • This step requires the aid of another technician.
    CAUTION:
    • Make sure that the torque converter remains in the transmission.
    • Apply grease of the correct specification to the torque converter spigot.
    NOTE: Remove and discard the cable ties securing the torque converter.
    G11292303
  10. G11292286

    Torque Specification: 48 Nm

  11. G11292285

    Torque Specification: 48 Nm

  12. NOTE: If necessary, install new clips.
    G11292284

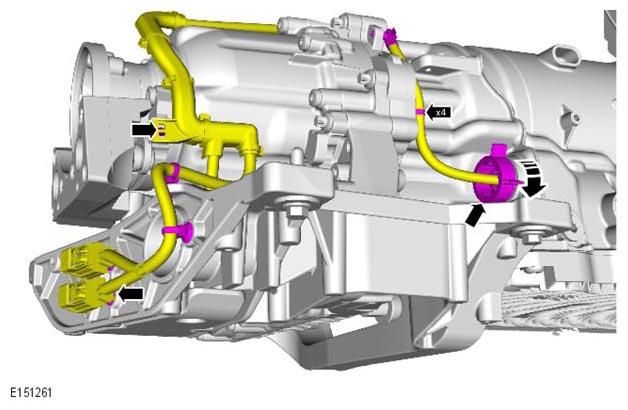

  13. NOTE: If necessary, install new clips.

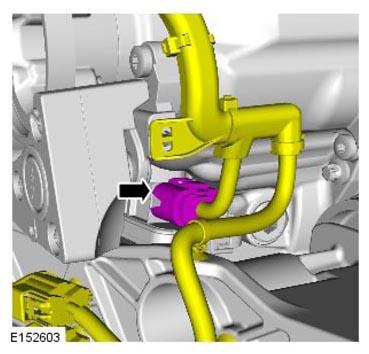

    G11292307
  14. G11292308
  15. NOTE: If necessary, install new clips.
    G11292281

    Torque Specification: 15 Nm

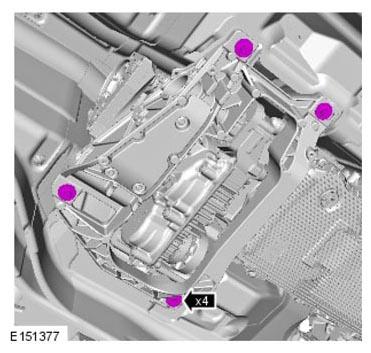

  16. G11292279

    Torque Specification: 43 Nm

  17. G11292278

    Remove the jack supporting the transmission.

  18. G11284094
  19. G11284053
  20. CAUTION: Make sure that new bolts are installed.
    NOTE: Make sure that you re-align the driveshaft to the transmission flange using the alignment mark.
    G11284095

    Torque Specification: 75 Nm

  21. CAUTION: Make sure that new nuts are installed.
    G11284093

    Torque Specification: 48 Nm

  22. G11284092
  23. G11284091

    Torque Specification: 10 Nm

  24. CAUTION: Remove the cable tie.
    G11292093
  25. G11284090

    Torque Specification: 11 Nm

  26. CAUTION:
    • Make sure that new bolts are installed.
    • Only rotate the crankshaft clockwise.
    G11292269

    Torque Specification: 63 Nm

  27. G11291703
  28. CAUTION: Make sure that a new bolt is installed.
    G11292267

    Torque Specification: 35 Nm

  29. G11292004
  30. CAUTION: If necessary, install new clip.
    G11292265
  31. G11292264

    Torque Specification: 48 Nm

  32. CAUTION:
    • Install the new seals.
    • Be prepared to collect escaping fluids.
    G11291983

    Torque Specification: 22 Nm

  33. NOTE: If necessary, install new clips.
    G11286674
  34. NOTE: If necessary, install new clips.
    G11286657
  35. Refer to: Exhaust System - AWD - REMOVAL AND INSTALLATION (V6 S/C 3.0L).
  36. Refer to: Front Driveshaft - AWD (Installation).
  37. G11287264

    Special Tool(s):  303-021

  38. G11292027

    Special Tool(s):  303-1435

  39. G11292026

    Torque Specification: 48 Nm

  40. G11292025
  41. Refer to: COWL VENT SCREEN (Front End Body Panels, Installation).
  42. Refer to: ENGINE COVER - V8 5.0L PETROL/V8 S/C 5.0L PETROL (Interior Trim and Ornamentation, Installation).
  43. Reconnect the battery ground cable.

    Refer to: BATTERY DISCONNECT AND CONNECT (General Procedures).

  44. Check and top-up the transmission fluid level.

    Refer to: TRANSMISSION FLUID LEVEL CHECK (G1868411) .
