Input Shaft Seal (G1551379): Removal
WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
- Refer to: Battery Disconnect and Connect (General Procedures).
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: TRANSMISSION INSTALLATION (G1551386) .
-
CAUTION: Be prepared to collect escaping fluids.
Special Tool(s): 307-613
-
CAUTION:
- Discard the seal.
- Take extra care to avoid damaging the seal register and running surface.
- Take extra care not to damage the edges of the component.

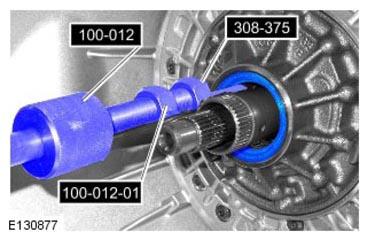

Special Tool(s): 100-012, 100-012-01, 308-375
