Extension Housing Seal (G1551380): Removal

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Transfer Case (Removal).
CAUTION: Care must be taken to avoid damage to the seal register and running surface.

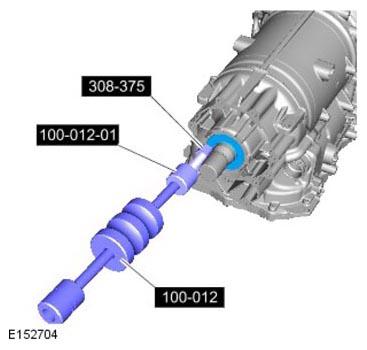

Special Tool(s): 100-012, 100-012-01, 308-375
