Extension Housing Seal (G1551380): Installation
WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
-
CAUTION:
- Oil seals must be fitted dry.
- Make sure that the mating faces are clean and free of foreign material.

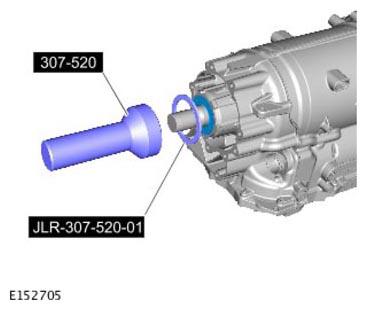

Special Tool(s): 307-520, JLR-307-520-01
- Refer to: Transfer Case (Removal).
- Refer to: Battery Disconnect and Connect (General Procedures).
- Refer to: TRANSMISSION FLUID LEVEL CHECK (G1868411) .
