Component Location

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

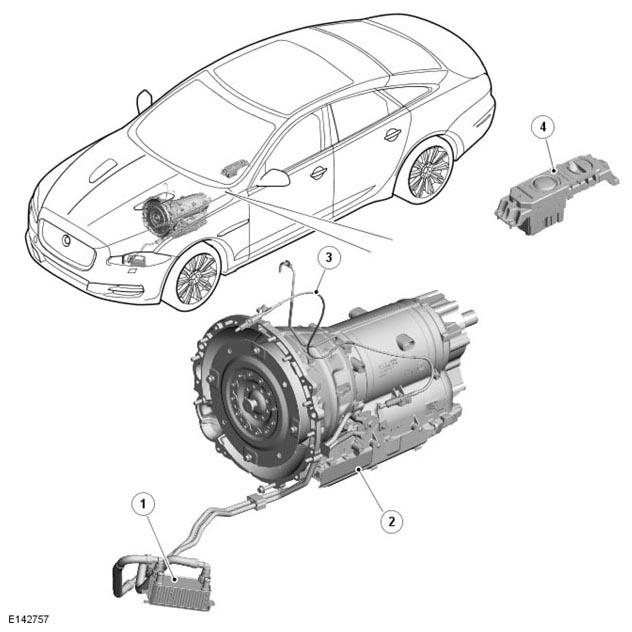

G11292163
ITEM DESCRIPTION
1 Automatic Transmission Fluid (ATF) cooler
2 Automatic transmission
3 Emergency Park Release (EPR) cable
4 Transmission Control Switch (TCS)
