Fuel Rails And Crossover Tube
WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

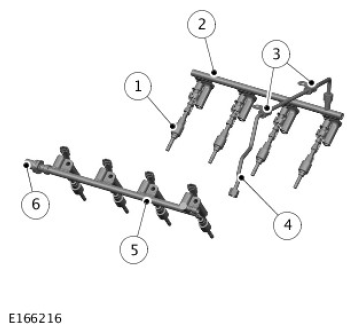

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel injector (8 off) |
| 2 | Fuel rail - Bank 2 |
| 3 | Clamp (2 off) |
| 4 | Crossover tube |
| 5 | Fuel rail - Bank 1 |
| 6 | Fuel Rail Pressure and Temperature (FRPT) sensor |
The fuel rails and crossover tube are made from stainless steel. Bolts attach each fuel rail to the related cylinder head. The crossover tube connects the front high pressure line to the Bank 2 fuel rail, which ensures there is equal pressure in the two fuel rails. Two P-clips attach the crossover tube to the intake manifold.
The rear of the Bank 1 fuel rail incorporates a threaded boss for installation of the FRPT sensor.
