Starter Motor (G1279231): Removal

NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (General Procedures).
  2. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).
  3. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  4. G11285162

    Torque Specification: 7 Nm

  5. CAUTION: Make sure that the protective cover is correctly installed over the electrical connector.

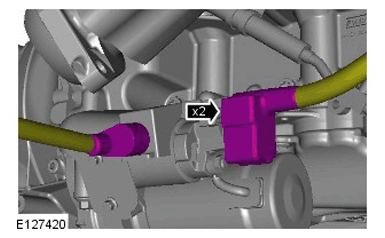

    G11293772

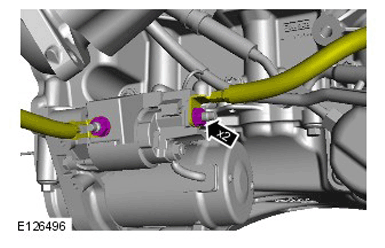

  6. G11285540

    Torque Specification: 12 Nm

  7. G11287261

    Torque Specification: 6 Nm

  8. G11293775

    Torque Specification: 48 Nm

  9. G11293776
