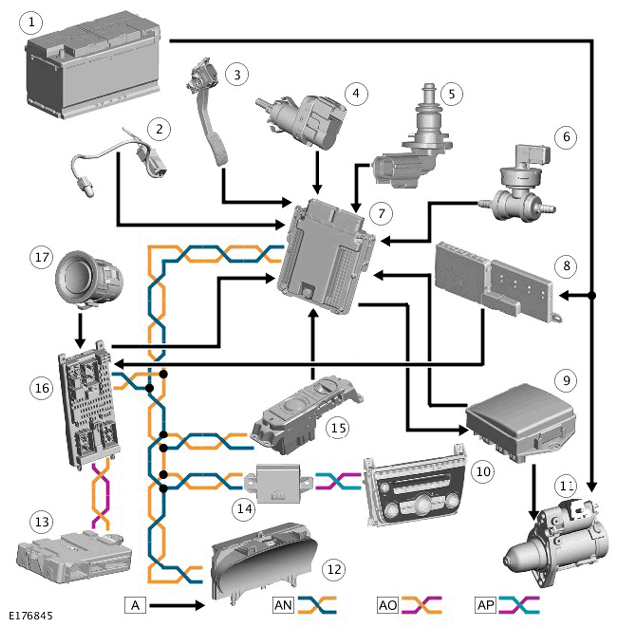

| 1 |
Battery |
| 2 |
Ambient Air Temperature (AAT) sensor |
| 3 |
Accelerator Pedal Position (APP) sensor |
| 4 |
Brake pedal switch |
| 5 |
Engine Coolant Temperature (ECT) sensor |
| 6 |
Brake vacuum switch |
| 7 |
Engine Control Module (ECM) |
| 8 |
Battery Junction Box (BJB) |
| 9 |
Engine Junction Box (EJB) |
| 10 |
Integrated Control Panel (ICP) - Auto stop/start switch |
| 11 |
Starter motor |
| 12 |
Instrument Cluster (IC) |
| 13 |
Keyless Vehicle Module (KVM) |
| 14 |
Gateway Module (GWM) |
| 15 |
Transmission Control Switch (TCS) |
| 16 |
Central Junction Box (CJB) |
| 17 |
Stop/Start switch |
