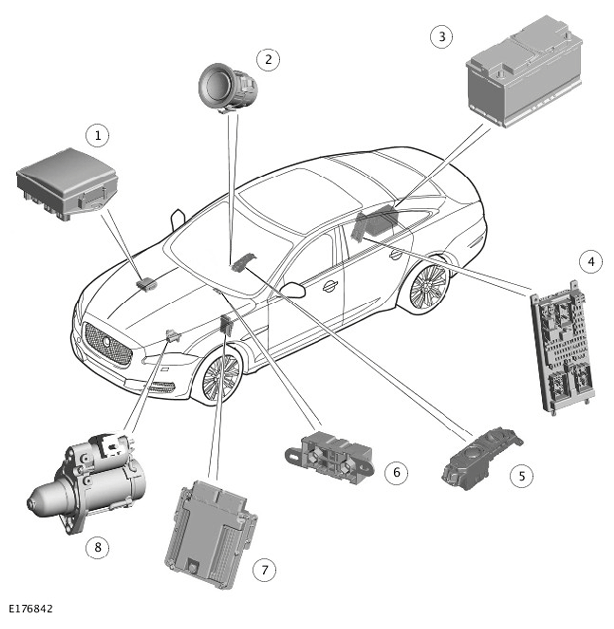

Component Location - Sheet 1 Of 2 - Starting System

G11293763
ITEM DESCRIPTION
1 Engine Junction Box (EJB)
2 Stop/start switch
3 Battery
4 Central Junction Box (CJB)
5 Transmission Control Switch (TCS)
6 Megafuse
7 Engine Control Module (ECM)
8 Starter motor
