Brake Disc - Vehicles With: High Performance Brakes (G1272013): Removal

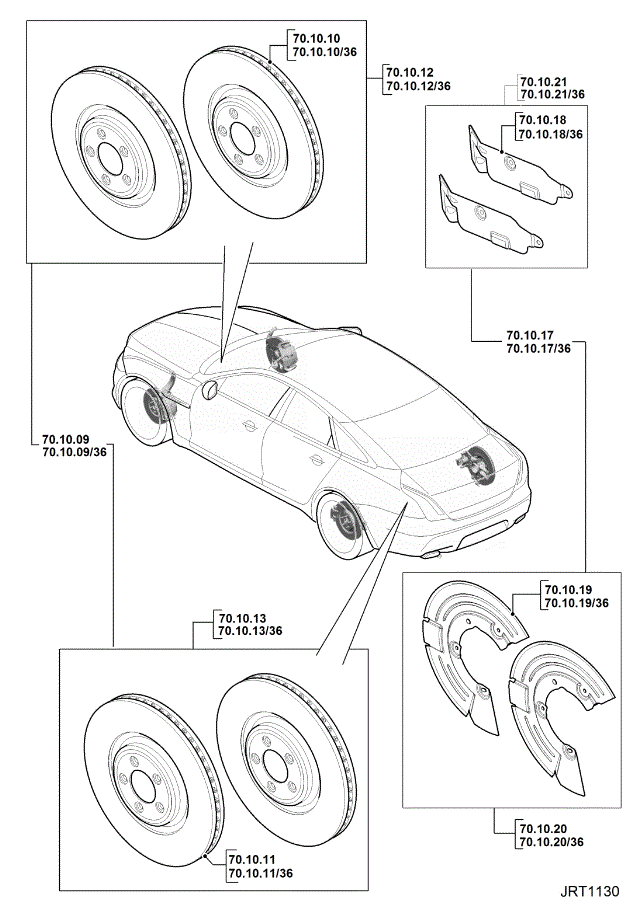

70.10.13 REAR DISC - VEHICLE SET - RENEW ALL DERIVATIVES 0.7
G00564307
CAUTION: Brake discs must be renewed in pairs.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Refer to Brake Pads - Vehicles With: High Performance Brakes  (Removal and Installation).
  3. G11284462
    • Torque Specifications: 103 Nm
  4. NOTE: Make sure that all the component mating faces are clean.
    G11283620
    • Remove the 2 clips.
    • Repeat the above procedure on the opposite side.
