Engine Cooling Schematic Diagrams

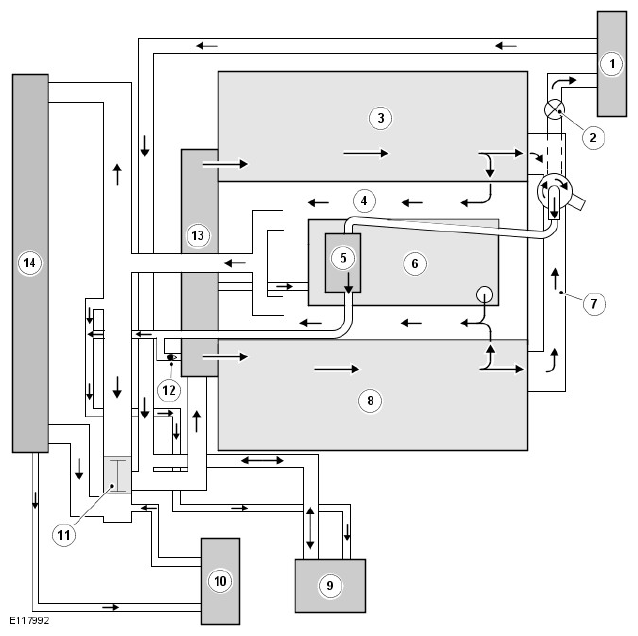

Engine Coolant Flow Diagram - SHEET 1 OF 3 - Naturally Aspirated Vehicles For All Market, Except HOT Market
| ITEM | DESCRIPTION |
|---|---|
| 1 | Heater core |
| 2 | Bleed screw |
| 3 | Cylinder head - Bank 1 |
| 4 | Cylinder block |
| 5 | Throttle body |
| 6 | Engine oil cooler |
| 7 | Heater manifold |
| 8 | Cylinder head - Bank 2 |
| 9 | Expansion tank |
| 10 | Automatic Transmission Fluid (ATF) cooler |
| 11 | Thermostat |
| 12 | Check valve |
| 13 | Coolant pump |
| 14 | Radiator |

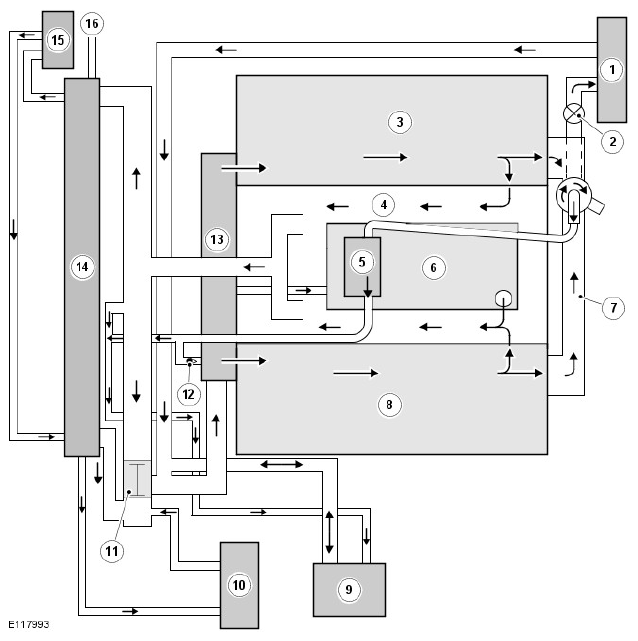

Engine Coolant Flow Diagram - SHEET 2 OF 3 - Supercharged Vehicles For All Market, Except HOT Market
| ITEM | DESCRIPTION |
|---|---|
| 1 | Heater core |
| 2 | Bleed screw |
| 3 | Cylinder head - Bank 1 |
| 4 | Cylinder block |
| 5 | Throttle body |
| 6 | Engine oil cooler |
| 7 | Heater manifold |
| 8 | Cylinder head - Bank 2 |
| 9 | Expansion tank |
| 10 | Automatic Transmission Fluid (ATF) cooler |
| 11 | Thermostat |
| 12 | Check valve |
| 13 | Coolant pump |
| 14 | Radiator |
| 15 | Auxiliary radiator |
| 16 | Connection with supercharger cooling system |

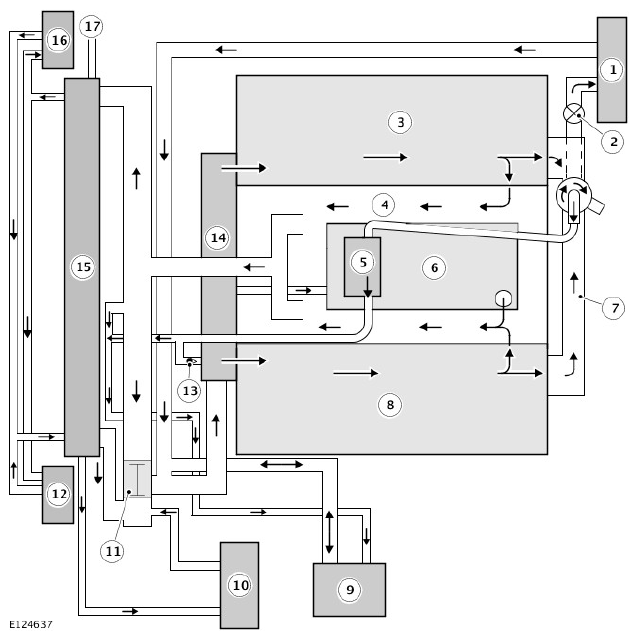

Engine Coolant Flow Diagram - SHEET 3 OF 3 - Naturally Aspirated and Supercharged Vehicles In HOT Market
| ITEM | DESCRIPTION |
|---|---|
| 1 | Heater core |
| 2 | Bleed screw |
| 3 | Cylinder head - Bank 1 |
| 4 | Cylinder block |
| 5 | Throttle body |
| 6 | Engine oil cooler |
| 7 | Heater manifold |
| 8 | Cylinder head - Bank 2 |
| 9 | Expansion tank |
| 10 | Automatic Transmission Fluid (ATF) cooler |
| 11 | Thermostat |
| 12 | Auxiliary radiator - left |
| 13 | Check valve |
| 14 | Coolant pump |
| 15 | Radiator |
| 16 | Auxiliary radiator - right |
| 17 | Connection with supercharger cooling system (Supercharged vehicles only) |
