Throttle Body: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
  3. CAUTION: Be prepared to collect escaping coolant.

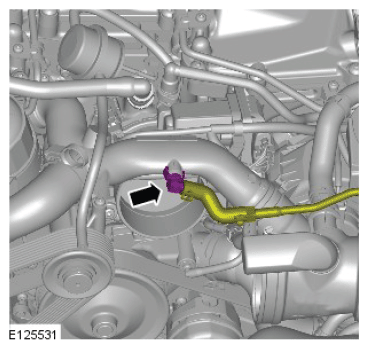

    G11288345
  4. G11288346
  5. G11288347
  6. NOTE:
    • This step should only be carried out on vehicles pre 2015.
    • Remove and discard the seals.
    G11288348

    Renew Part: Engine coolant outlet seal.

    Torque Specification: 10 Nm

  7. NOTE:
    • This step should only be carried out on vehicles from 2015 onwards.
    • Remove and discard the seal.
    G11288349

    Renew Part: Engine coolant outlet seal.

    Torque Specification: 10 Nm

  8. G11288350
  9. G11288351

    Torque Specification: 10 Nm

  10. CAUTION:
    • Take extra care when removing the throttle body, failure to follow this instruction may result in damage to the manifold absolute pressure and temperature (MAPT) sensor.
    • Do not attempt to clean the throttle body bore, build up of deposits reduces air leakage past the throttle plate at the fully closed position.
    G11288352
    • Remove and discard the gasket.
    • Install a new gasket.
