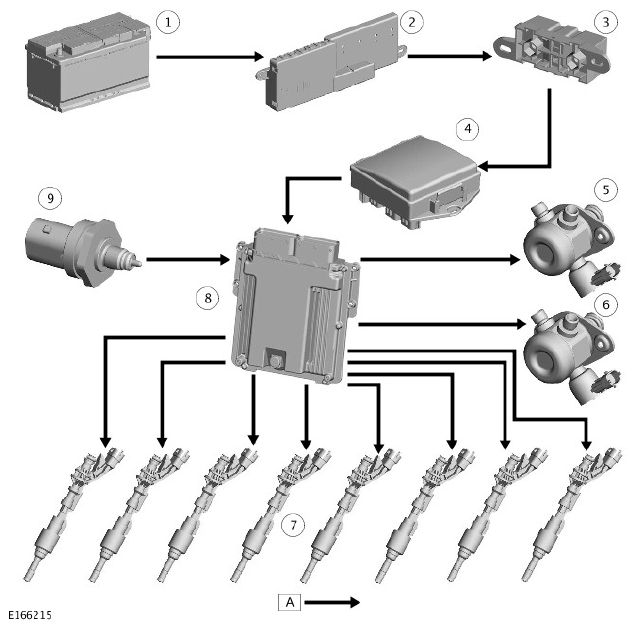

Control Diagram

NOTE: A = Hardwired.
G11288020
ITEM DESCRIPTION
1 Battery
2 Battery Junction Box (BJB)
3 Megafuse
4 Engine Junction Box (EJB)
5 No. 1 High Pressure (HP) fuel pump
6 No. 1 High Pressure (HP) fuel pump
7 Fuel injectors
8 Engine Control Module (ECM)
9 Fuel Rail Pressure and Temperature (FRPT) sensor
