Brake Fluid Reservoir (G1268355): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. For additional information, refer to: Cowl Vent Screen (Removal and Installation).
  3. WARNING: Do not allow dirt or foreign liquids to enter the reservoir. Use only new brake fluid of the correct specification from airtight containers. Do not mix brands of brake fluid as they may not be compatible.
    CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

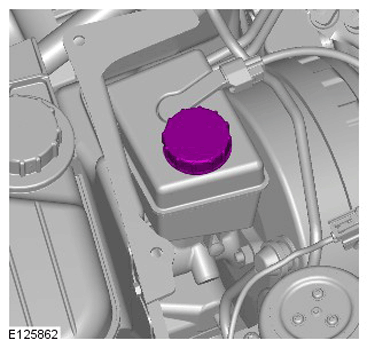

    G11284522

    Using a suitable suction device drain the brake fluid resrvoir.

    Clean the area around the reservoir filler cap, remove the cap.

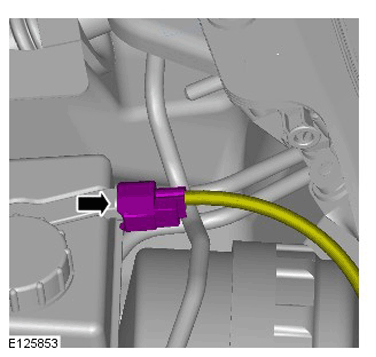

  4. G11284523

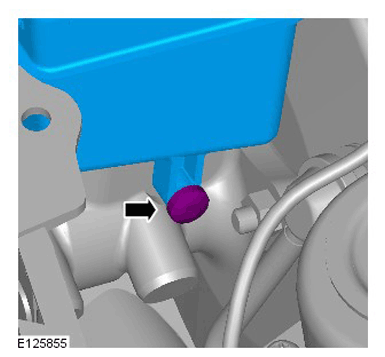

  5. G11284524

    Torque Specification: 4 Nm

  6. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    G11284525

    Install the new seals.
