Overhead Console (G1267531): Installation

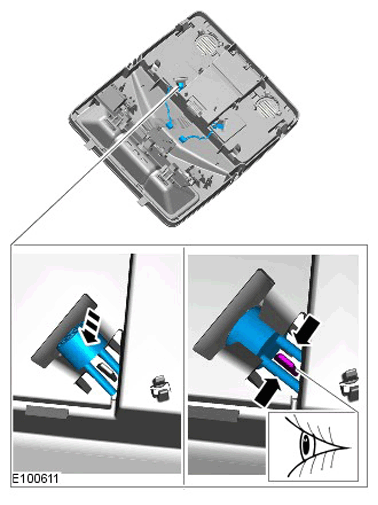

  1. CAUTION: Take extra care not to damage the wiring harnesses.
G11290065

To install, reverse the removal procedure.
