Instrument Panel Lower Section (G1268201): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Floor Console Side Trim Panel .
  2. NOTE: The steering wheel is shown removed for clarity.

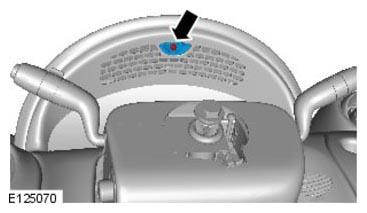

    G11292923

    Torque Specification: 2 Nm

  3. NOTE: The steering wheel is shown removed for clarity.

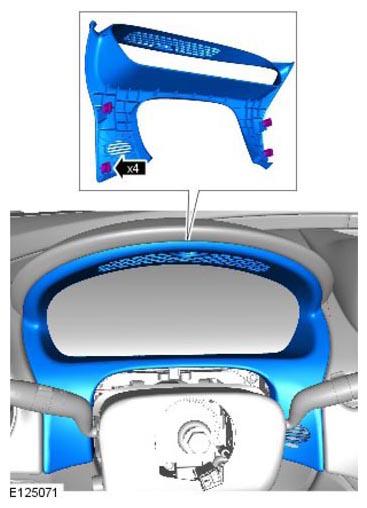

    G11292924

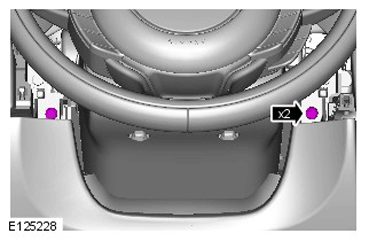

  4. G11290002

  5. Torque Specification: 2.5 Nm

    G11288519

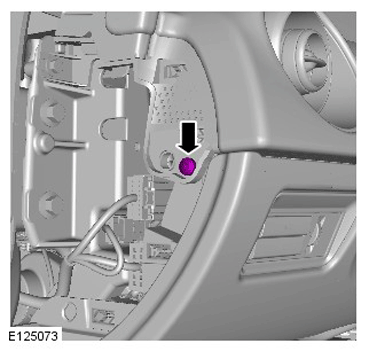

  6. G11289991

    Torque Specification: 2.5 Nm

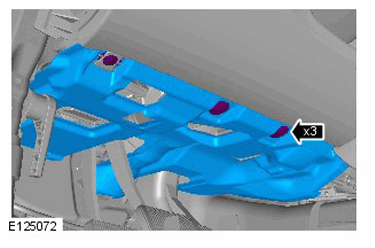

  7. G11290005

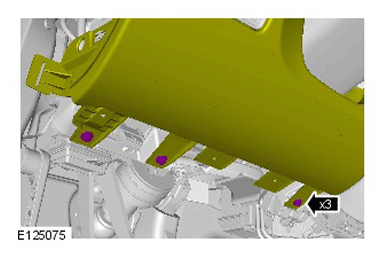

  8. G11290006

    Torque Specification: 9 Nm

  9. NOTE: Do not disassemble further if the component is removed for access only.

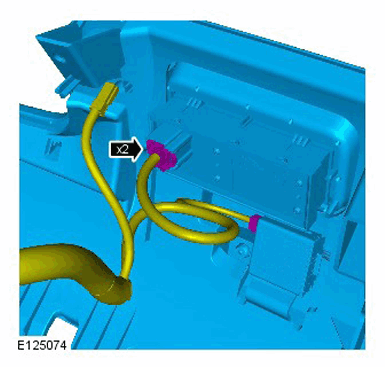

    G11290007

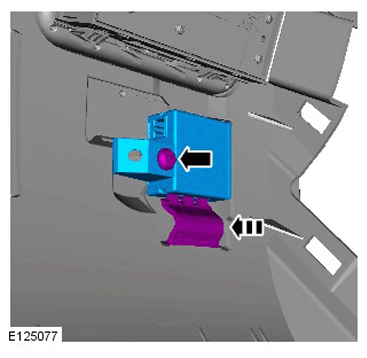

  10. G11290008

    Torque Specification: 2 Nm

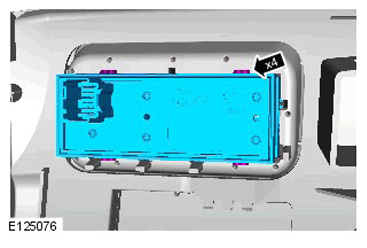

  11. G11290009
