System Operation And Component Description (G1772642)

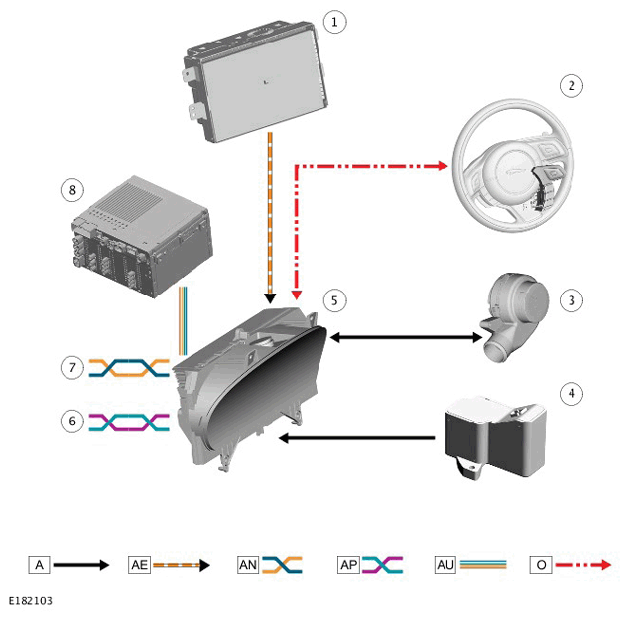

NOTE:
A
= Hardwired; AE
= LVDS signal; AN
= High Speed (HS) Controller Area Network (CAN) powertrain systems bus; AP
= Medium Speed (MS) CAN comfort systems bus; AU
= APIX2; O
= Local Interconnect Network (LIN) bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Connection to MOST ring |
| 2 | Touch Screen (TS) |
| 3 | Right Hand (RH) steering wheel mounted switch assembly |
| 4 | Instrument Cluster (IC) cooling fan |
| 5 | Electric Steering Column Lock (ESCL) |
| 6 | Connection to Medium Speed Controller Area Network (CAN) bus |
| 7 | Connection to High Speed Controller Area Network (CAN) bus |
| 8 | Connection to MOST ring |
| 9 | Instrument Cluster |
| 10 | Connection to MS CAN bus |
