Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Right illustration shown, left is similar
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  1. Raise and support the vehicle on a suitable 2 post lift. Refer to: Lifting .

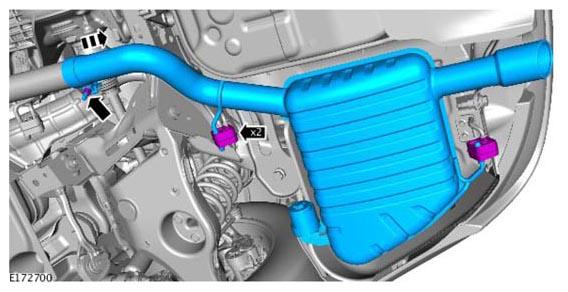

  2. Remove the exhaust mounting.
    G11314617

    Torque: 55 Nm

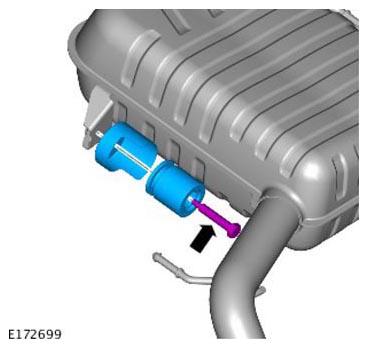

  3. Remove the exhaust Noise Vibration and Harshness (NVH) mass damper.
    CAUTION: Make sure that a new bolt is installed.
    NOTE:
    • Do not disassemble further if the component is removed for access only.
    • If equipped.
    G11314618

    Torque: 22 Nm
