Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Air Deflector .

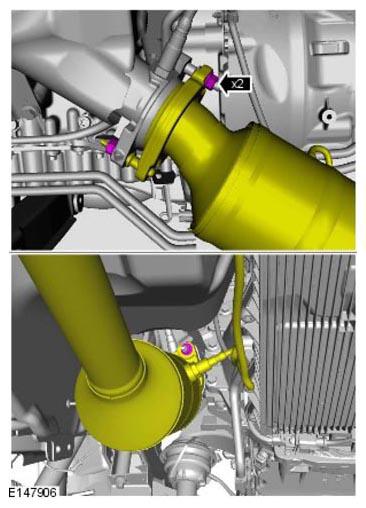

  3. G11292540

    Torque: 40 Nm

  4. G11291965

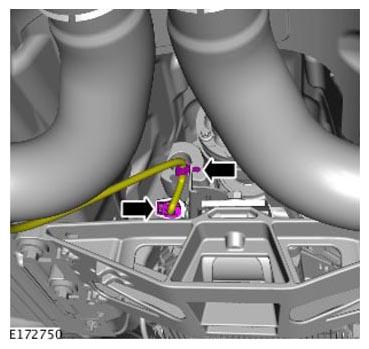

  5. G11314627

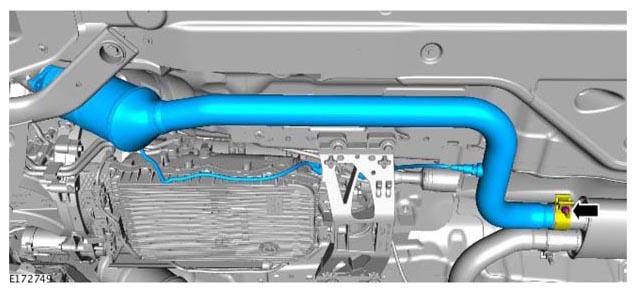

  6. G11314628

    Torque: 55 Nm

  7. NOTE: Do not disassemble further if the component is removed for access only.

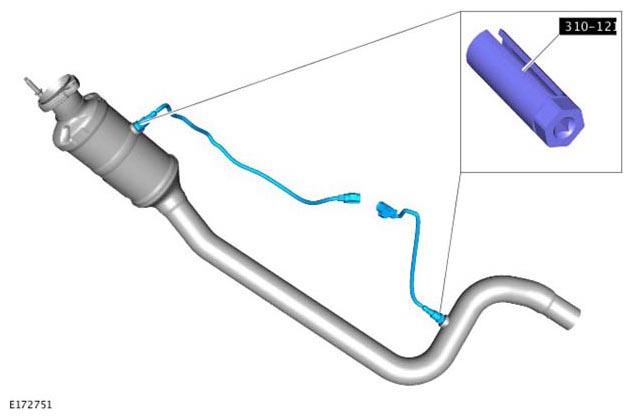

    G11314629

    Special Tool(s):  310-121

    Torque: 48 Nm
