Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some components shown removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Air Deflector .

    2WD vehicles

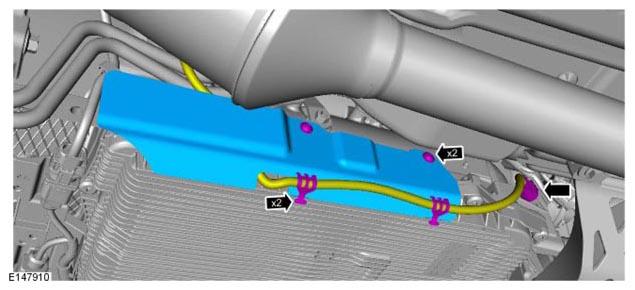

  3. G11291965

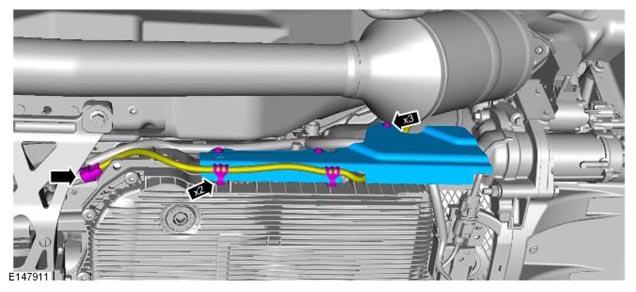

  4. G11292249

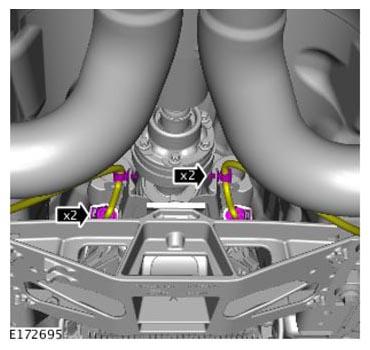

  5. G11314638

    4WD vehicles

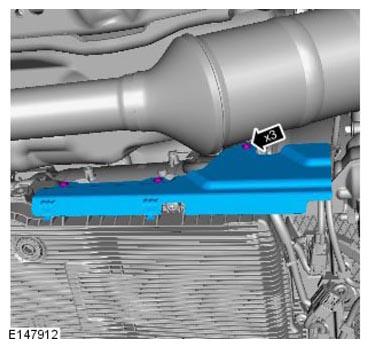

  6. G11292561

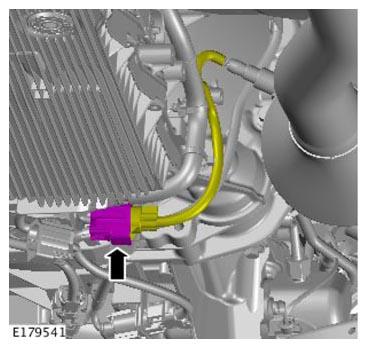

  7. G11314640

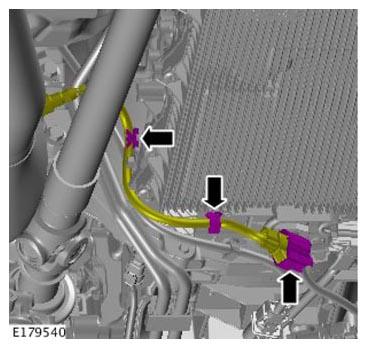

  8. G11314641

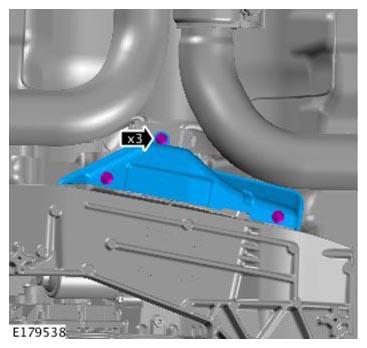

  9. G11314642

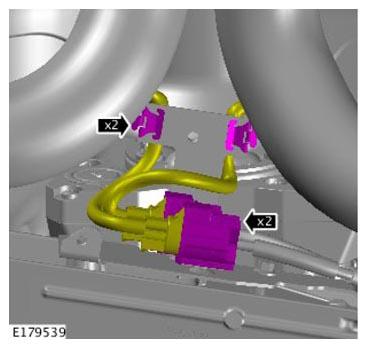

  10. G11314643

    All vehicles

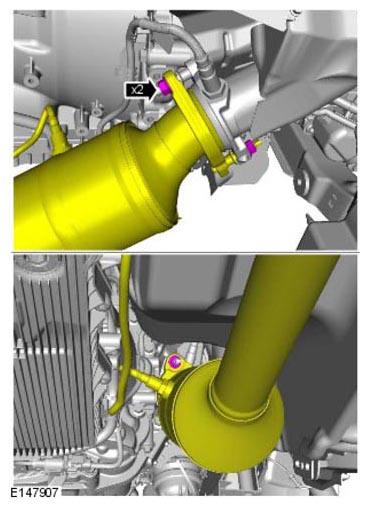

  12. G11292558

    Torque: 40 Nm

  13. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    NOTE: Repeat the step for the other side.

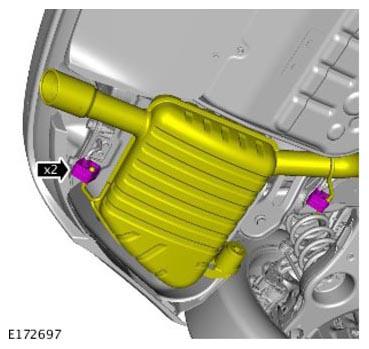

    G11314645

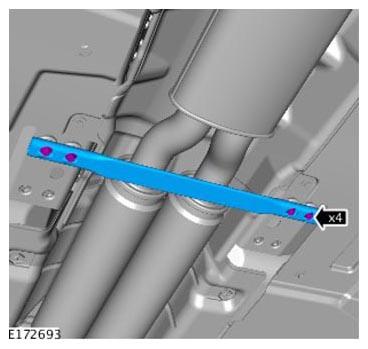

  14. G11314646

    Torque: 30 Nm

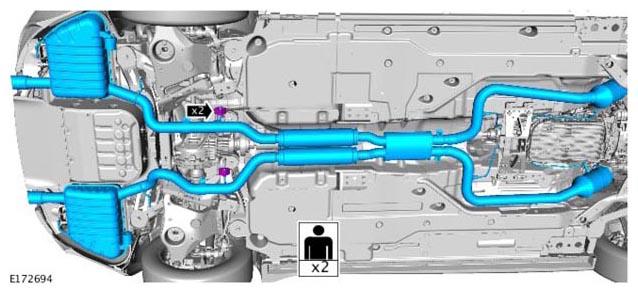

  15. G11314647

    2WD vehicles

  16. NOTE: Do not disassemble further if the component is removed for access only.

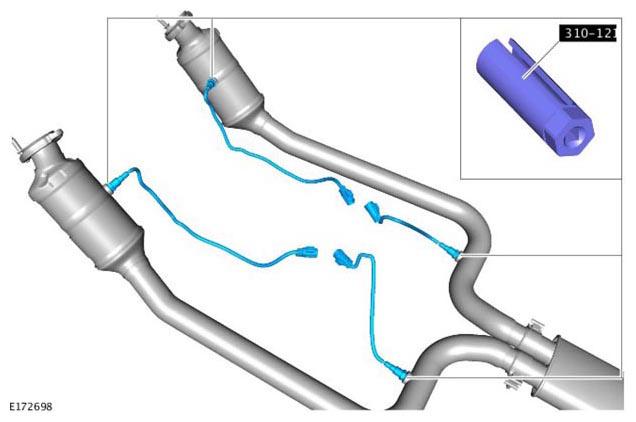

    G11314648

    Torque: 48 Nm

    4WD vehicles

  17. NOTE: Do not disassemble further if the component is removed for access only.

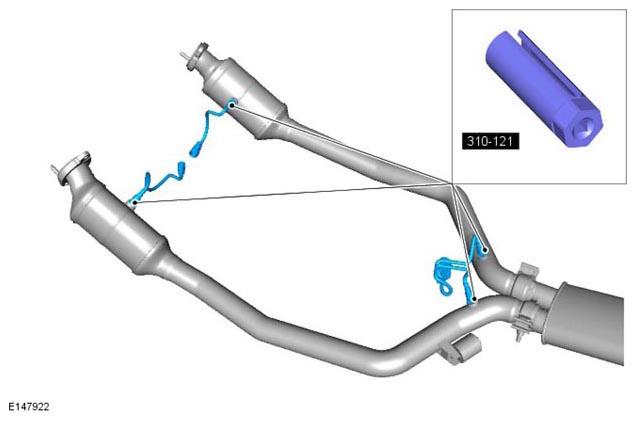

    G11292595

    Torque: 48 Nm

    All vehicles

  18. CAUTION: Make sure that new bolts are installed.

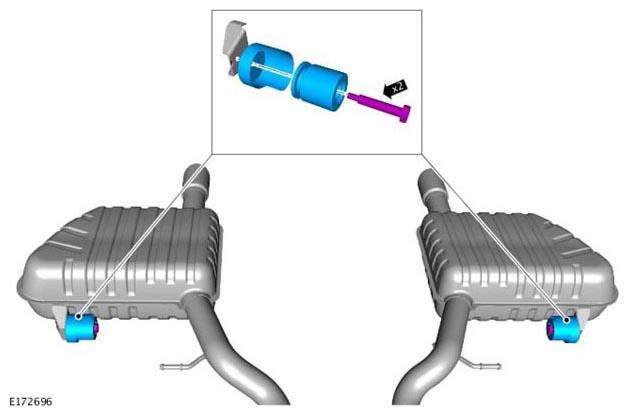

    G11314650

    Torque: 22 Nm
