Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Air Cleaner Outlet Pipe T-Connector .
  2. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  3. Refer to: Cooling System Draining and Vacuum Filling .

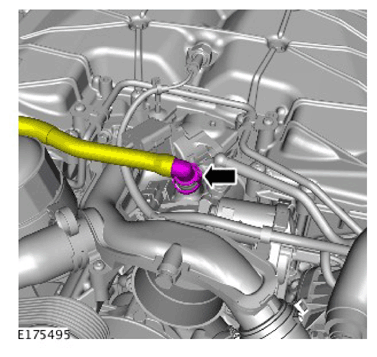

  4. G11307841

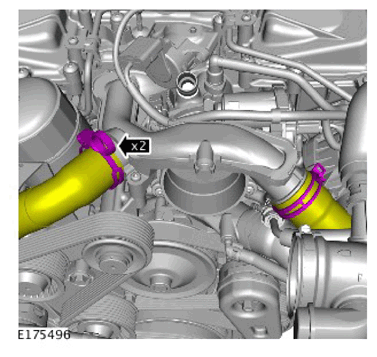

  5. G11307842
  6. G11310407
  7. NOTE:
    • This step should only be carried out on vehicles pre 2015.
    • Remove and discard the seals.

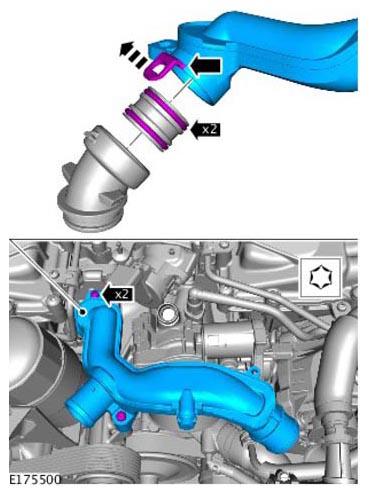

    G11310408

    Renew Part: Engine coolant outlet seal.

    Torque: 10 Nm

  8. NOTE:
    • This step should only be carried out on vehicles from 2015 onwards.
    • Remove and discard the seal.
    G11288349

    Renew Part: Engine coolant outlet seal.

    Torque: 10 Nm

  9. CAUTION:
    • Take extra care when removing the throttle body, failure to follow this instruction may result in damage to the manifold absolute pressure and temperature (MAPT) sensor.
    • Do not attempt to clean the throttle body bore, build up of deposits reduces air leakage past the throttle plate at the fully closed position.
    G11310409

    Torque: 10 Nm

  10. NOTE: Install a new gasket.

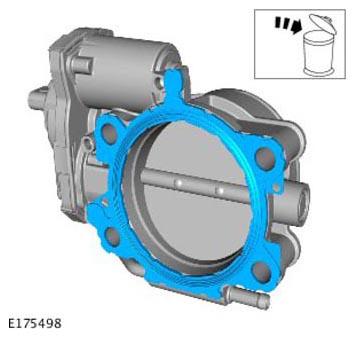

    G11310410

    Renew Part: Throttle body gasket Quantity: 1
