Removal And Installation: Notes
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

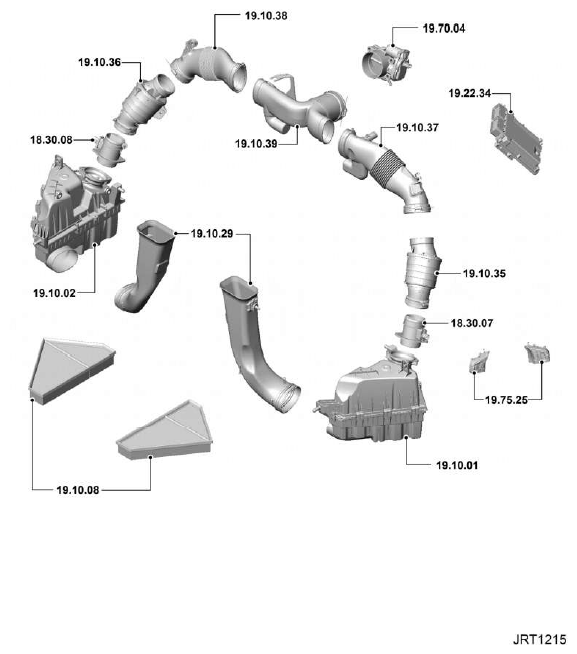

| 19.70.04 |
THROTTLE HOUSING - ENGINE SET - RENEW |
3000 CC, AJ V6 (AJ126) |
1.5 |
PART(S)
| STEP |
PART NAME |
QUANTITY |
| Removal Step 7 |
Engine coolant outlet seal |
1 |
| Removal Step 8 |
Engine coolant outlet seal |
1 |
| Removal Step 10 |
Throttle body gasket |
1 |
