Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Always follow the fuel system health and safety precautions, when carrying out any repairs to the fuel system.

    Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .

  2. Release the pressure from the high pressure fuel components. Refer to: Fuel System Pressure Release .
  3. Disconnect the startup battery ground cable.

    Refer to: Battery Disconnect and Connect .

  4. Remove the engine cover.

    Refer to: Engine Cover - V6 S/C 3.0L Petrol

  5. Drain the cooling system.

    Refer to: Cooling System Partial Draining, Filling and Bleeding .

  6. Remove air cleaner outlet pipe.

    Refer to: Right Air Cleaner Outlet Pipe .

  7. Clean the fuel injection components.

    Refer to: Fuel Injection Component Cleaning .

  8. Disconnect the left side coolant pipes.
    G11286148
  9. Release the left side pipes.
    G11286149
  10. Remove the left side engine Noise, Vibration and Harshness (NVH) material.
    G11286151
  11. Disconnect the right side coolant pipes.
    CAUTION: Be prepared to collect escaping coolant.
    G11307646
  12. Disconnect and release the brake vacuum pipe.
    G11307647
  13. Remove the right side engine Noise, Vibration and Harshness (NVH) material.
    G11307648
  14. Remove the right side breather.
    G11307649
  15. Release the engine wiring harness.
    G11285398
  16. Remove the fuel crossover pipe.
    CAUTION: Be prepared to collect escaping fuel.
    G11307650
  17. Release the fuel pipe.
    CAUTION: Be prepared to collect escaping fuel.
    G11285400
  18. Disconnect the right side fuel injectors and ignition coils wiring harness.
    G11307689
  19. Remove the right side ignition coils.
    G11307690

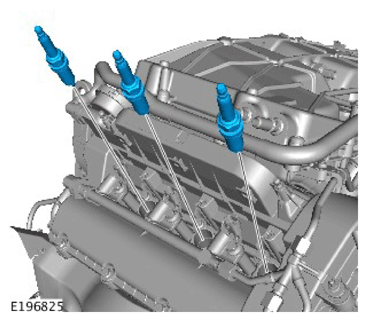

  20. Remove the spark plugs.
    G11307691

    Special Tool(s):  303-1450

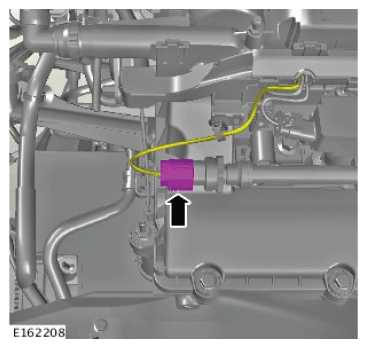

  21. Disconnect the fuel rail pressure sensor connector.
    G11288076
  22. Remove the right side fuel rail.
    CAUTION: Make a note of the fuel injector clamp alignment to the fuel rail prior to removal.
    G11293410
  23. Remove the fuel rail pressure sensor.
    NOTE: This step is only required if a new fuel rail is installed.

    Refer to: Fuel Rail Pressure Sensor ..

  24. Remove the right side fuel injectors.
    CAUTION:
    • Make sure that the special tool is located correctly to the fuel injector prior to removing the fuel injector.
    • Make sure that the special tool is held square to the fuel injector during removal.
    G11288078

    Special Tool(s):  310-197

  25. Remove the injector clamp.
    CAUTION:
    • If the fuel injector is being removed without a new component being installed, the fuel injector clamp must remain with the fuel injector it is removed with.
    • If new fuel injectors are installed, a new injector clamp must be installed.
    G11288042
  26. Remove the fuel injector seal.
    CAUTION:
    • Discard the seal.
    • Do not use a knife to remove the Teflon seal as damage could occur to the fuel injector.
    • Do not cut the Teflon seal to deep as damage could occur to the fuel injector.
    • Pinch the Teflon seal to allow the tool to cut the Teflon seal without damaging the fuel injector.
    G11288043
  27. Remove and discard seals.
    CAUTION:
    • Discard the seal.
    • Do not use any sharp tools to remove the O-ring seal as damage could occur to the fuel injector.
    • Take extra care not to damage the component.
    G11288044
  28. Remove the engine mount nut.
    G11309755
  29. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting .

  30. Remove the generator.

    Refer to: Generator .

  31. Release generator wiring harness.
    G11307699
  32. Remove the idler pulley.
    G11299688
  33. Using a suitable hydraulic jack, support the engine.
    CAUTION: Use a wooden block to protect the oil pan when supporting the engine.
    G11309757

    General Equipment:  Transmission jack

  34. Remove the engine mount bracket to engine rear bolts.
    G11307702
  35. Remove the engine mount bracket to engine.
    G11309761
  36. Disconnect and release the high pressure fuel pump wiring harness.
    G11299947
  37. Remove the high pressure fuel pipe shield.
    G11299951
  38. Disconnect the high pressure fuel pump supply pipes.
    CAUTION: Be prepared to collect escaping fuel.
    G11299953
  39. Release the high pressure fuel pump supply pipes.
    G11299821
  40. Remove and discard the high pressure fuel supply pipes.
    CAUTION: Be prepared to collect escaping fuel.
    G11285412
