Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Always follow the fuel system health and safety precautions, when carrying out any repairs to the fuel system.

    Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .

  2. Release the pressure from the high pressure fuel components. Refer to: Fuel System Pressure Release .
  3. Disconnect the startup battery ground cable.

    Refer to: Battery Disconnect and Connect .

  4. Remove the engine cover.

    Refer to: Engine Cover - V6 S/C 3.0L Petrol .

  5. Drain the cooling system.

    Refer to: Cooling System Partial Draining, Filling and Bleeding .

  6. Clean the fuel injection components.

    Refer to: Fuel Injection Component Cleaning .

  7. Remove the purge valve.

    Refer to: Evaporative Emission Canister Purge Valve .

  8. CAUTION: Be prepared to collect escaping coolant.

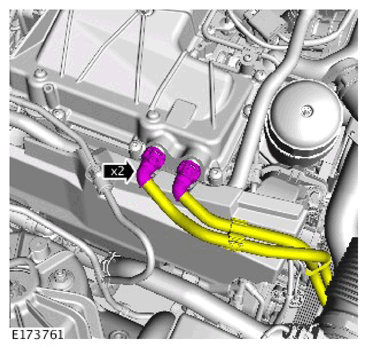

    G11307646

    Disconnect the right side coolant pipes.

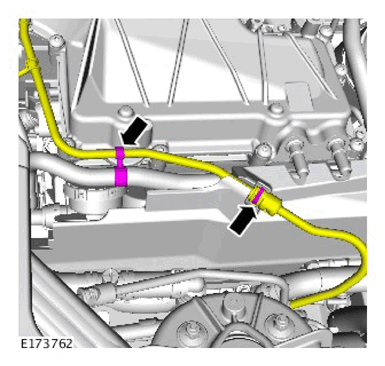

  9. G11307647

    Disconnect and release the brake vacuum pipe.

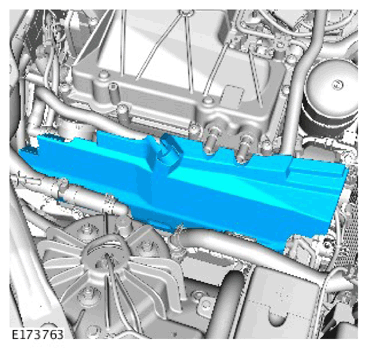

  10. G11307648

    Remove the right side engine Noise, Vibration and Harshness (NVH) material.

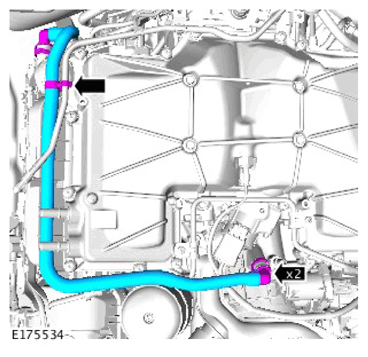

  11. G11307649

    Remove the right side breather.

  12. CAUTION: Be prepared to collect escaping fuel.
    G11307650

    Remove the fuel crossover pipe.

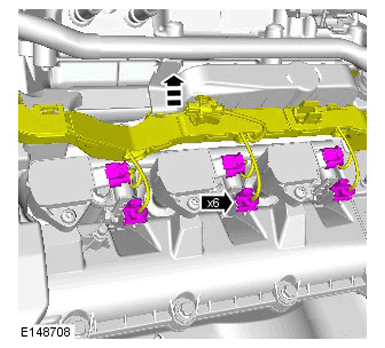

  13. G11293407

    Disconnect the left side fuel injectors and ignition coils wiring harness.

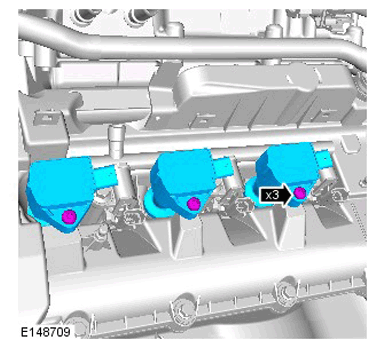

  14. G11293408

    Remove the left side ignition coils.

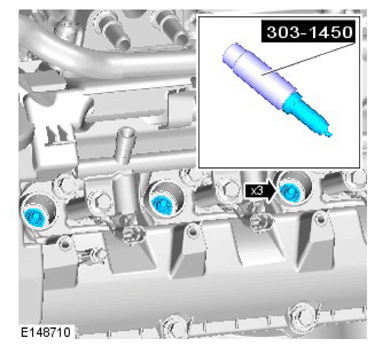

  15. G11307653

    Remove the left side spark plugs.

    Special Tool(s):  303-1450

  16. CAUTION: Make a note of the fuel injector clamp alignment to the fuel rail prior to removal.

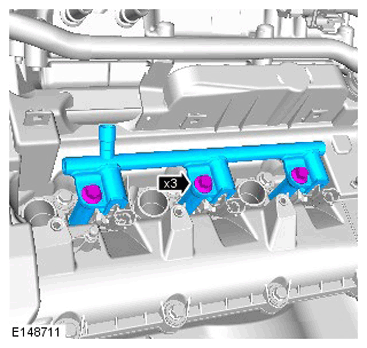

    G11293410

    Remove the left side fuel rail.

  17. CAUTION:
    • Make sure that the special tool is located correctly to the fuel injector prior to removing the fuel injector.
    • Make sure that the special tool is held square to the fuel injector during removal.

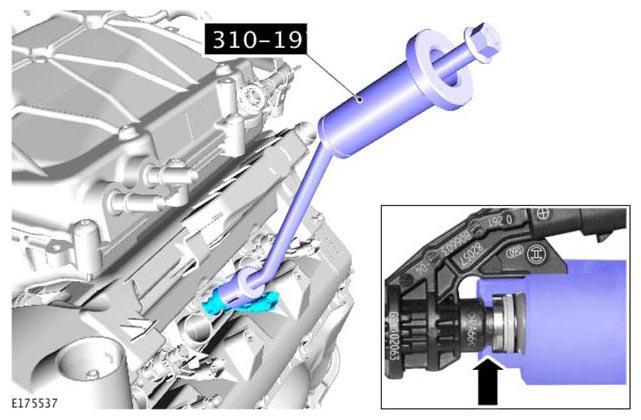

    G11310425

    Remove the left side fuel injectors.

    Special Tool(s):  310-197

  18. CAUTION:
    • If the fuel injector is being removed without a new component being installed, the fuel injector clamp must remain with the fuel injector it is removed with.
    • If new fuel injectors are installed, a new injector clamp must be installed.
    G11288042

    Remove the injector clamp.

  19. CAUTION:
    • Do not use a knife to remove the Teflon seal as damage could occur to the fuel injector.
    • Do not cut the Teflon seal to deep as damage could occur to the fuel injector.
    • Pinch the Teflon seal to allow the tool to cut the Teflon seal without damaging the fuel injector.
    • Remove and discard the seals.
    G11288043

    Remove the fuel injector seal.

  20. Remove and discard seals.
    CAUTION: Do not use any sharp tools to remove the O-ring seal as damage could occur to the fuel injector.
    G11288044
