Removal And Installation: Notes
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

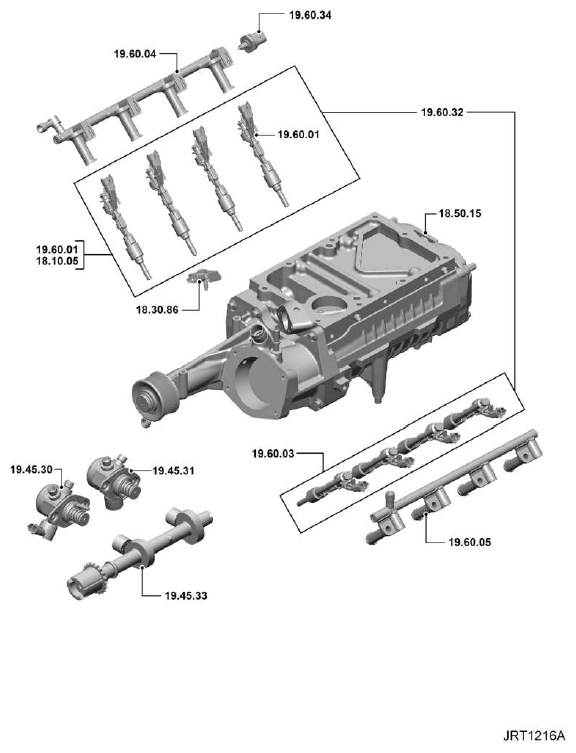

| 19.60.05 | FUEL RAIL - LEFT HAND - RENEW | 3000 CC, AJ V6 (AJ126) | 1.2 |
SPECIAL TOOL(S)
| 303-1450 Spark Plug Remover/Installer |
|
| 310-197 Remover, Fuel Injector |
|
| 310-198 Installer, Teflon Seal |
|
| 310-199 Re-shape Tool, Teflon Seal |
|
| 310-200-01 Fuel Rail Installation Guide Pins - Threaded |
|
| 310-200-02 Fuel Rail Installation Guide Pins - Unthreaded |
PART(S)
| STEP | PART NAME | QUANTITY |
|---|---|---|
| Installation Step 1 | Renew Part | Fuel injector O-ring seals |
| Installation Step 2 | Renew Part | Fuel injector seal |
