Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
CAUTION:
  • Do not allow the unions to hit the olive ends of the high-pressure fuel supply line as this may damage the ends of the high-pressure fuel supply line and allow foreign matter to enter the fuel injection system.
  • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE: Removal steps in this procedure may contain installation details.
  1. Raise and support the vehicle.
    CAUTION: Make sure to support the vehicle with axle stands.
  2. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .
  3. Refer to: Fuel System Pressure Release .
  4. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect .

  5. Refer to: Engine Cover - V6 S/C 3.0L Petrol .

  6. Refer to: Air Cleaner Outlet Pipe RH .

  7. Refer to: Air Deflector .
  8. CAUTION:
    • Be prepared to collect escaping coolant.
    • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
    G11286148
  9. G11286149
  10. G11286151
  11. CAUTION:
    • Be prepared to collect escaping coolant.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11286152
  12. G11286153
  13. G11286154
  14. G11285398
  15. Refer to: Fuel Injection Component Cleaning .

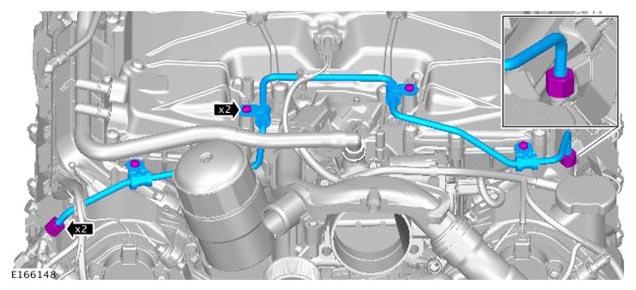

  16. CAUTION:
    • Be prepared to collect escaping fuel.
    • Make sure that all openings are sealed. Use new blanking caps.
    • This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.
    G11299812
  17. CAUTION:
    • Be prepared to collect escaping fuel.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11285400
  18. G11309755
  19. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  20. Refer to: Engine Oil Draining and Filling .
  21. Refer to: Generator .
  22. If equipped.

    Refer to: Halfshaft Support Bracket .

  23. G11299688
  24. CAUTION: Use a wooden block to protect the oil pan when supporting the engine.
    G11309757

    Support the engine.

  25. G11307702
  26. G11307699
  27. NOTE: Wiring harnesses shown removed for clarity.
    G11309761
  28. G11299947
  29. G11299815
  30. G11299816

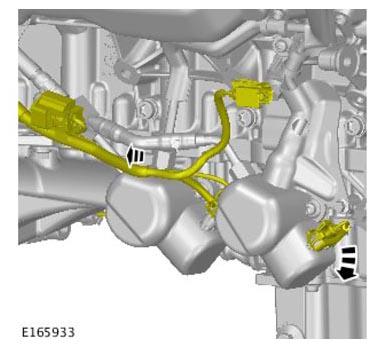

  31. G11299950
  32. G11299951
  33. CAUTION:
    • Make sure that the area around the component is clean and free of foreign material.
    • Be prepared to collect escaping fuel.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11299953
  34. G11299821
  35. CAUTION:
    • Make sure that the area around the component is clean and free of foreign material.
    • Be prepared to collect escaping fuel.
    • Make sure that all openings are sealed. Use new blanking caps.
    • Remove and discard the high-pressure fuel supply lines.
    G11285412
  36. G11301783
  37. CAUTION: Be prepared to collect escaping oil.
    G11301784

    Loosen the Torx screws a turn each at a time.

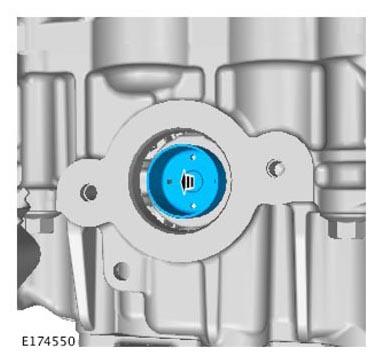

  38. G11301785
