Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

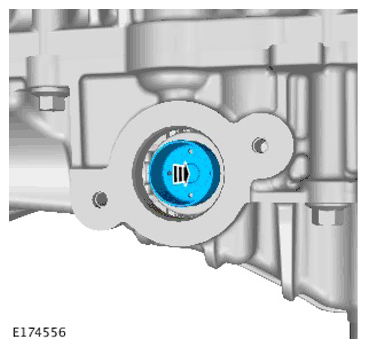

NOTE: Lubricate the high-pressure fuel pump bucket with clean engine oil.

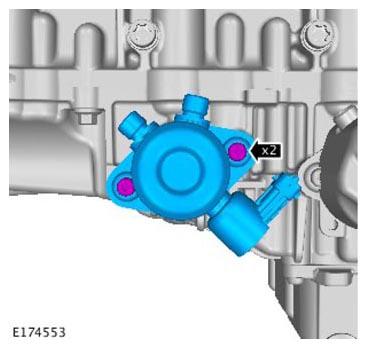

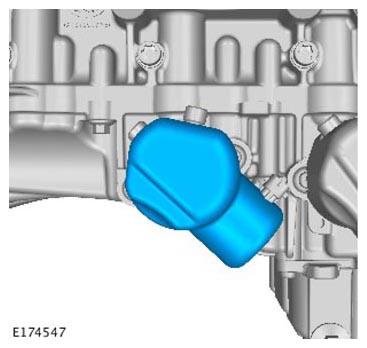

CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.

NOTE: Lubricate the high-pressure fuel pump O-ring seal with clean engine oil.
- Torque: 11 Nm
CAUTION:
- Install new high-pressure fuel supply lines.
- Lubricate only the union threads with clean engine oil.
- Only tighten the bolts and unions finger tight at this stage.
NOTE: Remove and discard the blanking caps.
- Torque :
  Unions (1) 21 Nm

  M6 bolt (2) 11 Nm

  M8 bolt (3) 25 Nm
- Torque: 21 Nm
CAUTION: Only tighten the unions finger tight at this stage.

NOTE: Remove and discard the blanking caps.
Torque: 12 Nm
- Torque: 21 Nm
1. Torque:
  M10 29 Nm

  M6 11 Nm
NOTE: Wiring harnesses shown removed for clarity.

Torque: 48 Nm
Torque: 48 Nm
Remove the special tool.
Torque: 25 Nm
Refer to: Generator .
CAUTION: Do not install the air deflector at this stage.
Torque: 60 Nm
NOTE:
- Install the nut and unions finger tight before final tightening.
- Remove and discard the blanking caps.
- Torque:
  Unions 21 Nm

  M5 nut 6 Nm
CAUTION: This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.

NOTE: Remove and discard the blanking caps.
- Torque:
  Unions 21 Nm

  M6 8 Nm
Torque: 21 Nm
NOTE: Remove and discard the blanking caps.
NOTE: Remove and discard the blanking caps.
Refer to: Air Cleaner Outlet Pipe RH .
Refer to: Engine Oil Draining and Filling .
If equipped.
Refer to: Halfshaft Support Bracket .
Refer to: Engine Cover - V6 S/C 3.0L Petrol .
Refer to: Air Deflector .
WARNING: After carrying out repairs, the fuel system must be checked visually for leaks. Failure to follow these instructions may result in personal injury.
Connect the battery ground cable.
Refer to: Battery Disconnect and Connect .
