Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Wait for a minimum of 1 minute after the engine has stopped before carrying out any repair to the fuel injection system.
Avoid flames, sparks or lighted substances.
Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.

CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean and dry. Plug open connections to prevent contamination.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.
Removal steps in this procedure may contain installation details.

Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .
Refer to: Fuel System Pressure Release .
Refer to: Battery Disconnect and Connect .
Refer to: Engine Cover - V6 S/C 3.0L Petrol .
Raise and support the vehicle.
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Refer to: Generator .
Refer to: Engine Mount RH .
Torque: 40 Nm

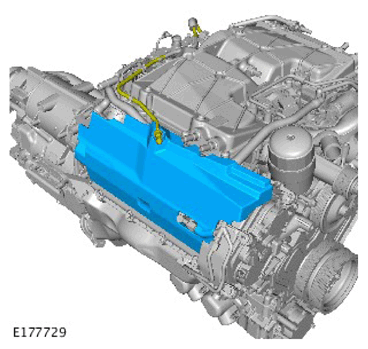

- Torque:
  M10 29 Nm

  M6 11 Nm

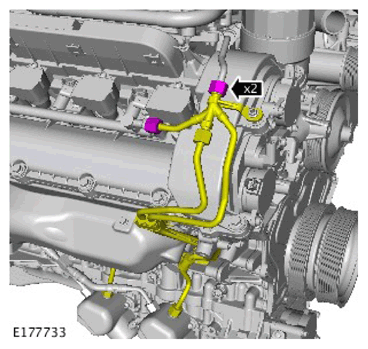

WARNING: Be prepared to collect escaping fuel.

CAUTION: Make sure that all openings are sealed. Use new blanking caps.

Torque: 21 Nm

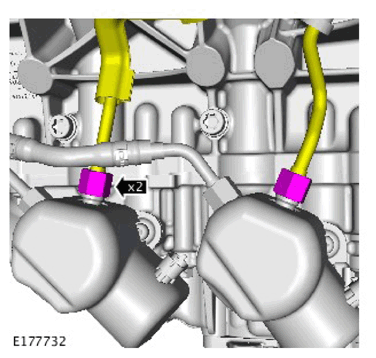

WARNING: Be prepared to collect escaping fuel.

CAUTION: Make sure that all openings are sealed. Use new blanking caps.

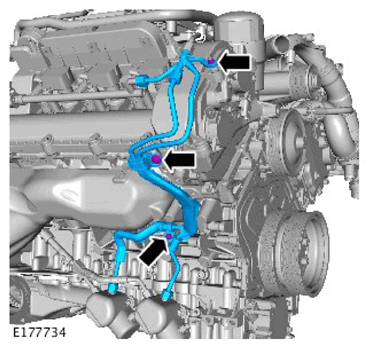

Torque: 21 Nm

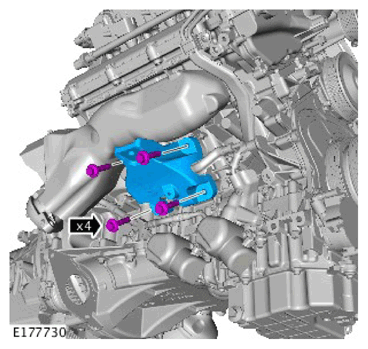

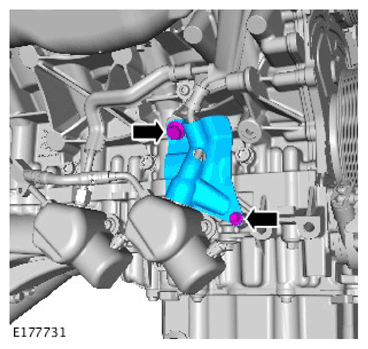

- Torque:
  M6 11 Nm

  M8 25 Nm

  M5 Nut 6 Nm
