Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Wait for a minimum of 1 minute after the engine has stopped before carrying out any repair to the fuel injection system.
  • Avoid flames, sparks or lighted substances.
  • Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.
CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean and dry. Plug open connections to prevent contamination.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .
  2. Refer to: Fuel System Pressure Release .
  3. Refer to: Battery Disconnect and Connect .
  4. Refer to: Engine Cover - V6 S/C 3.0L Petrol .
  5. G11310349

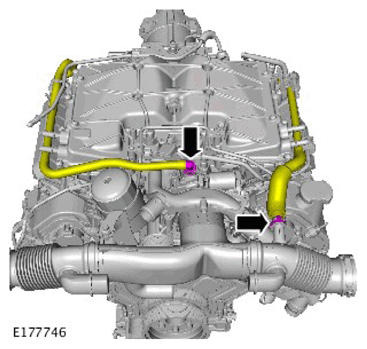

  6. G11307855

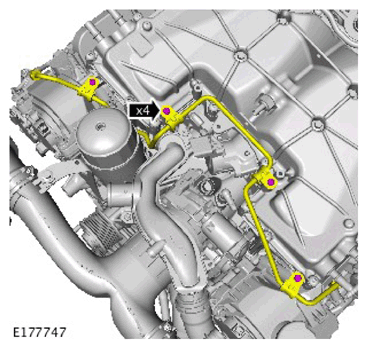

  7. G11307856

    Torque: 11 Nm

  8. WARNING: Be prepared to collect escaping fuel.
    CAUTION: Make sure that all openings are sealed. Use new blanking caps.

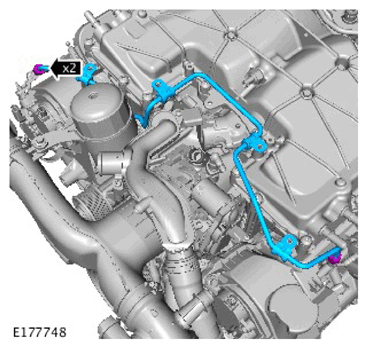

    G11307857

    Torque: 21 Nm
