Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect .

  2. CAUTION: Take extra care not to damage the wiring harnesses.

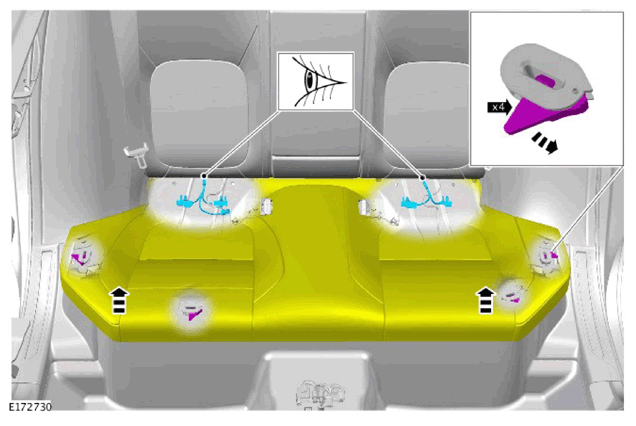

    G11307627

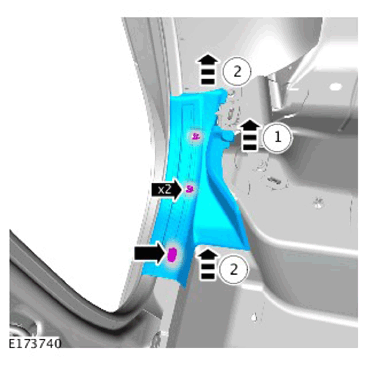

  3. G11307628

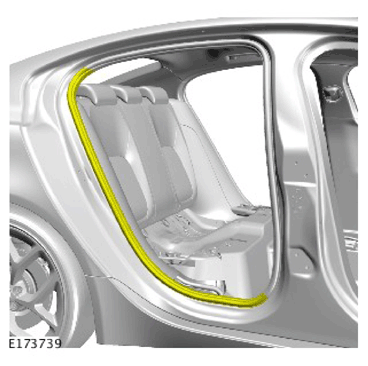

  4. G11307629

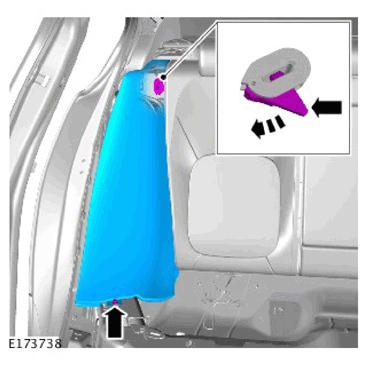

  5. G11307630

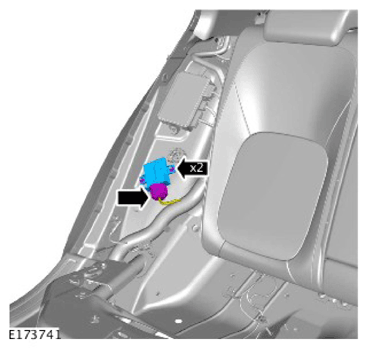

  6. G11307631

    Torque: 11 Nm
