Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Battery Disconnect and Connect .
  2. Refer to: Engine Cover - INGENIUM I4 2.0L Diesel .
  3. Raise and support the vehicle.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  4. Refer to: Cooling System Draining and Vacuum Filling .
  5. NOTE:
    • If equipped.
    • Remove and discard the gasket.
    • Remove and discard the O-ring seal.
    G11307118

    Renew Part: EGR inlet pipe to EGR valve gasket Quantity: 1

    Renew Part: EGR pipe to intake manifold O-ring seal Quantity: 1

    Torque:

    EGR pipe to EGR valve bolts 12 Nm

    EGR pipe to Intake manifold bolts 7 Nm

  6. CAUTION: Be prepared to collect escaping coolant.
    NOTE: If equipped.

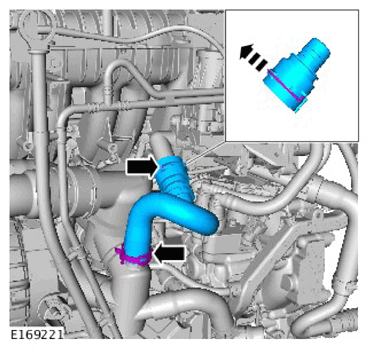

    G11307119
  7. CAUTION: Be prepared to collect escaping coolant.
    NOTE: If equipped.

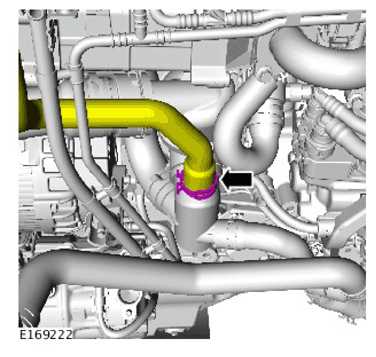

    G11307120
  8. CAUTION: Be prepared to collect escaping coolant.

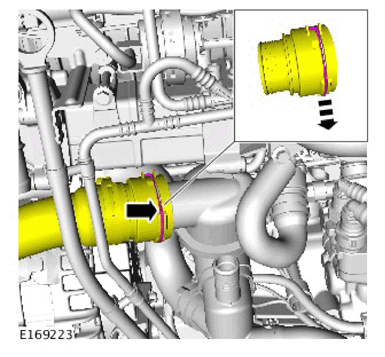

    G11307121
  9. CAUTION: Be prepared to collect escaping coolant.

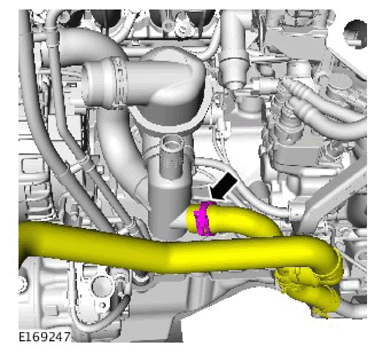

    G11307122
  10. CAUTION: Be prepared to collect escaping coolant.

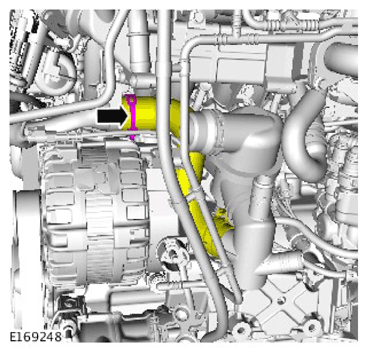

    G11307123

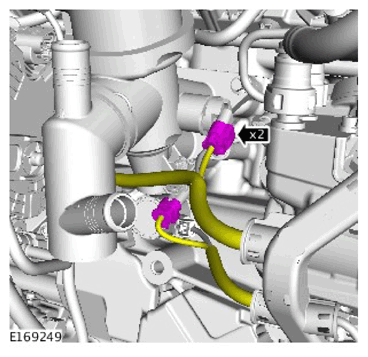

  11. G11307124
  12. CAUTION: Be prepared to collect escaping coolant.

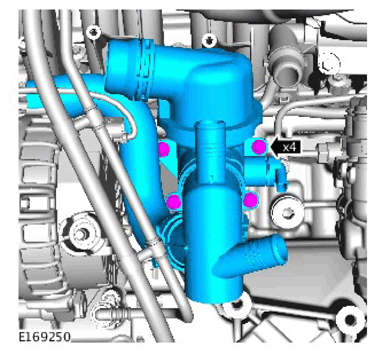

    G11307125

    Torque: 12 Nm

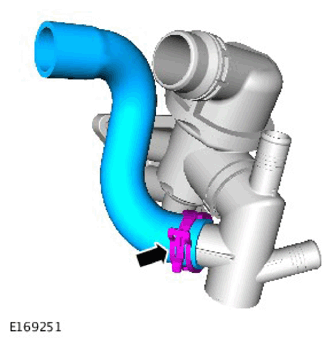

  13. G11307126

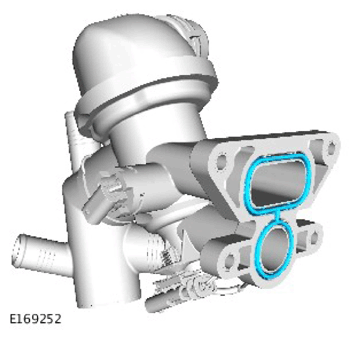

  14. NOTE: Remove and discard the gasket.
    G11307127
