Block Heater - If Equipped
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

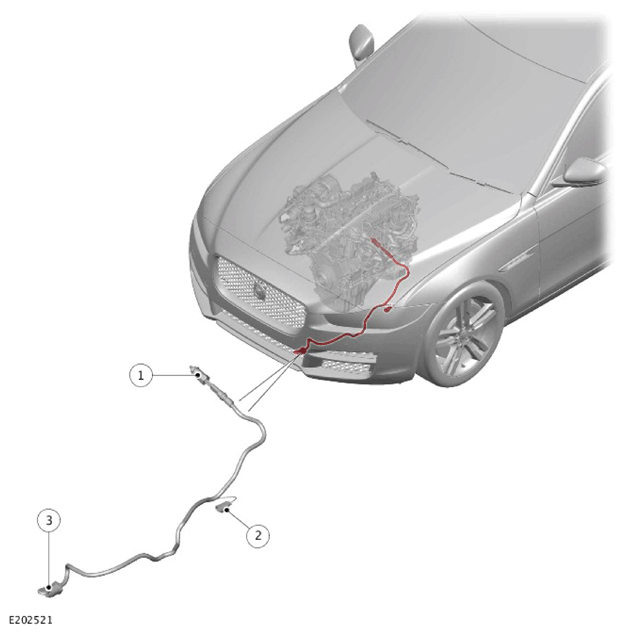

| ITEM | DESCRIPTION |
|---|---|
| 1 | Block heater element |
| 2 | Ground connection |
| 3 | Vehicle connector |
For vehicle markets subject to very cold climatic conditions, a cylinder block heater is installed in place of the cylinder block drain plug on the left side of the cylinder block. Dependent on market specifications, the block heater is either a 110 V AC or 240 V AC electric heater element. It can be connected to a domestic power supply via a connector in the left side grill of the front bumper.
