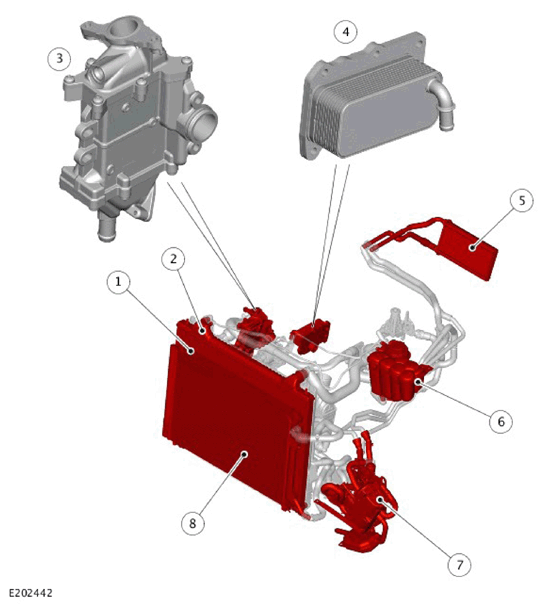

Component Location - 1 Of 4 - Front View
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM |
DESCRIPTION |
| 1 |
Charge air radiator |
| 2 |
Radiator |
| 3 |
Low Pressure (LP) Exhaust Gas Recirculation (EGR) cooler |
| 4 |
Oil cooler |
| 5 |
Heater core |
| 6 |
Coolant expansion tank |
| 7 |
Fuel Fired Booster Heater (FFBH) - If equipped |
| 8 |
Air Conditioning (A/C) condensor |
