Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Cooling fans may continue to operate after the engine is turned off. They may also start to operate after the engine is turned off and continue operating for up to 10 minutes.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.
Some components shown removed for clarity.

All vehicles

Refer to: Battery Disconnect and Connect .
Raise and support the vehicle.
WARNING: Make sure to support the vehicle with axle stands.
Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
Refer to: Air Cleaner .
Refer to: Intake Air Resonator .

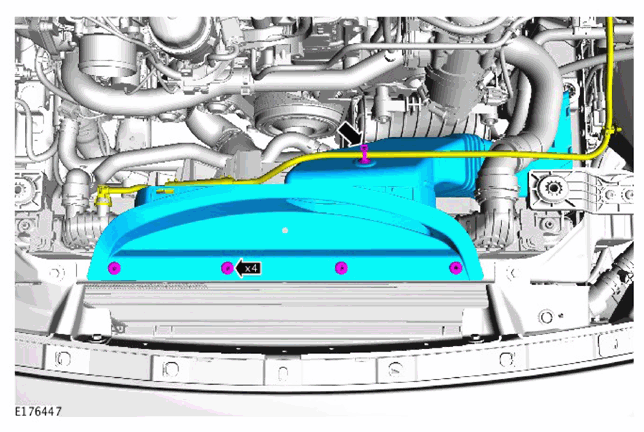

Torque: 9 Nm
Refer to: Cooling System Partial Draining, Filling And Bleeding .
Refer to: Air Deflector .

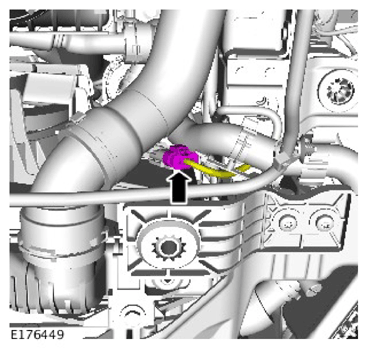

Vehicles with automatic transmission

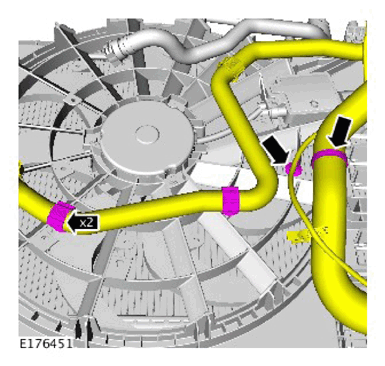

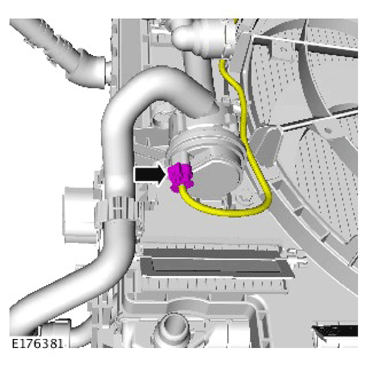

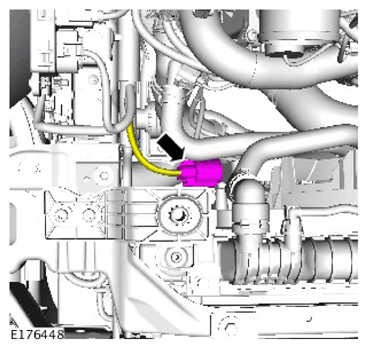

All vehicles

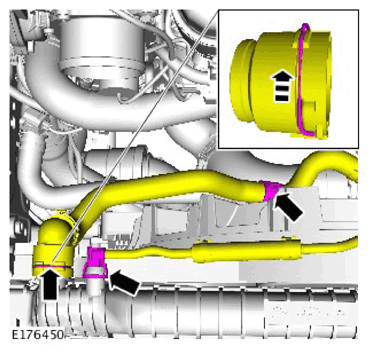

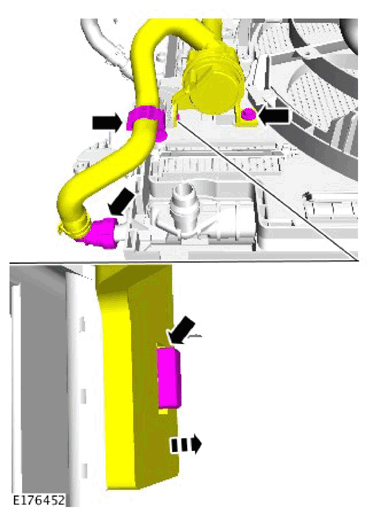

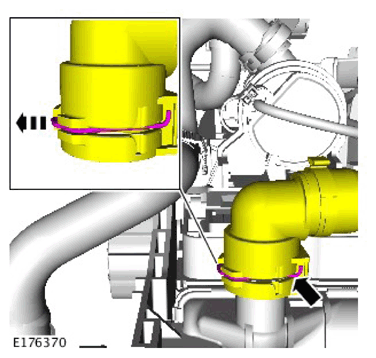

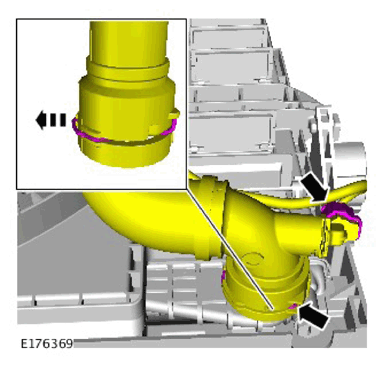

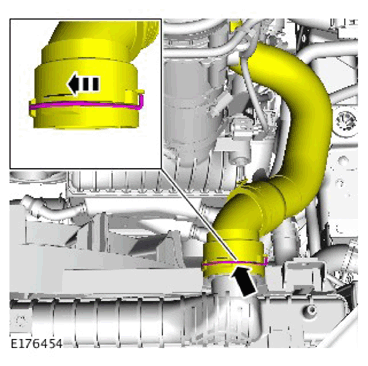

CAUTION: Be prepared to collect escaping coolant.

Torque: 9 Nm
Refer to: Front Bumper .

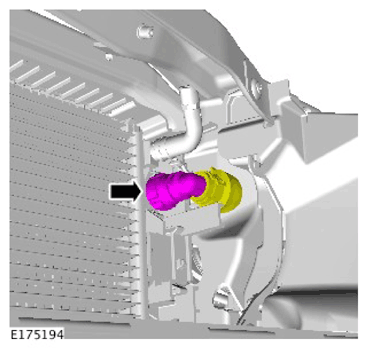

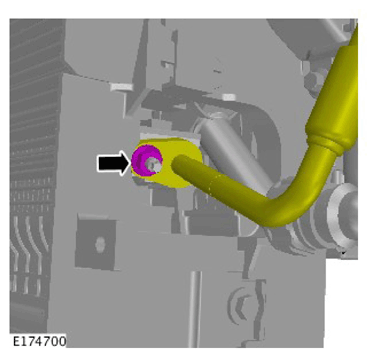

CAUTION:
- Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.
- Make sure that all openings are sealed. Use new blanking caps.
- A new O-ring seal is to be installed.
- Take care not to damage the O-ring seals during installation.
Torque: 20 Nm

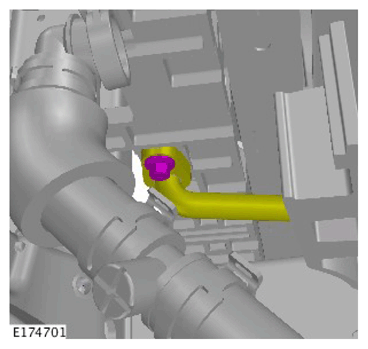

CAUTION:
- Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.
- Make sure that all openings are sealed. Use new blanking caps.
- A new O-ring seal is to be installed.
- Take care not to damage the O-ring seals during installation.
Torque: 20 Nm

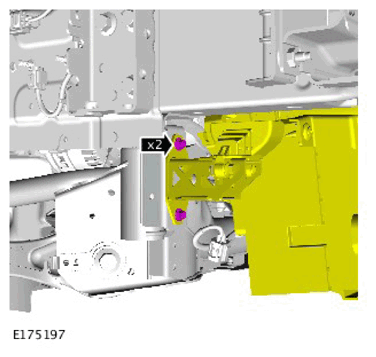

CAUTION: Make sure that the cooling module is supported for this step.

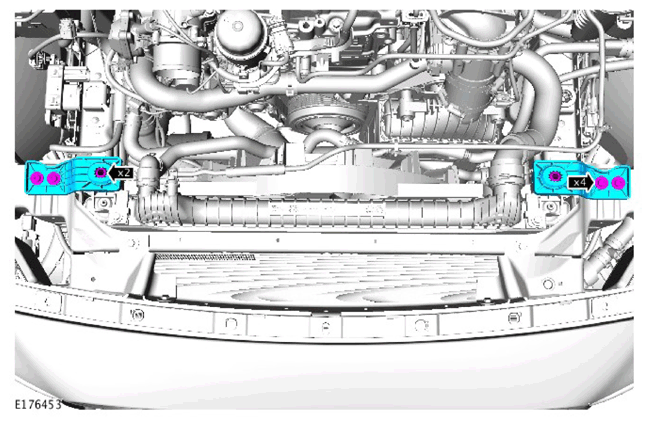

Torque: 9 Nm

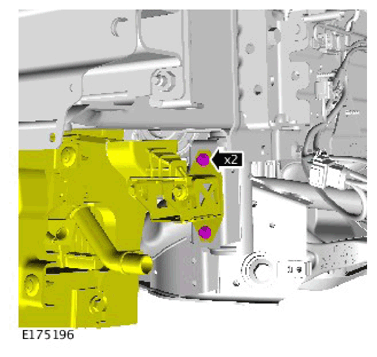

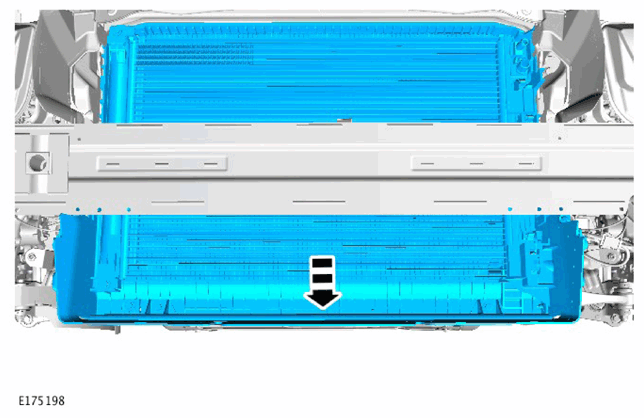

CAUTION: Make sure that the cooling module is supported for this step.

Torque: 9 Nm
