Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Cooling fans may continue to operate after the engine is turned off. They may also start to operate after the engine is turned off and continue operating for up to 10 minutes.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  • Some components shown removed for clarity.

All vehicles

  1. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  2. Refer to: Battery Disconnect and Connect .
  3. Refer to: CHARGE AIR COOLER .

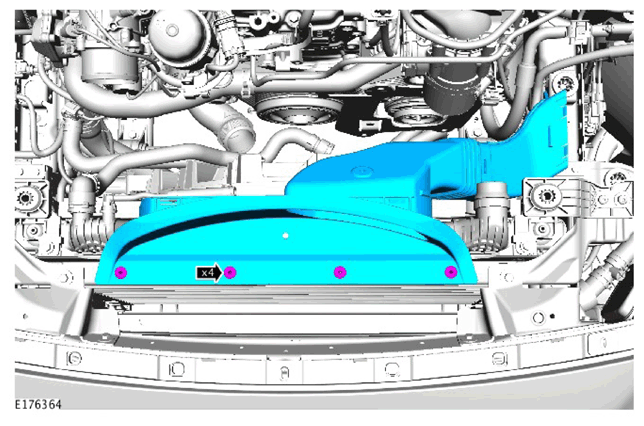

  4. G11307139

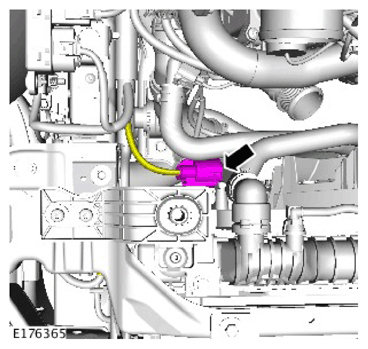

  5. G11307140

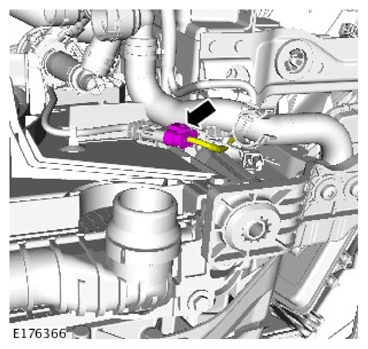

  6. G11307141

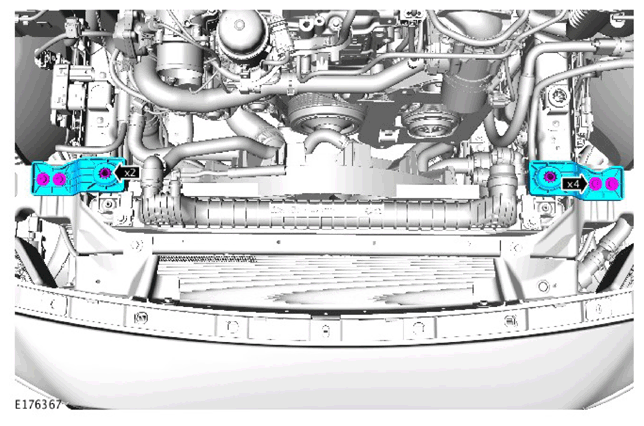

  7. G11307142

    Torque: 9 Nm

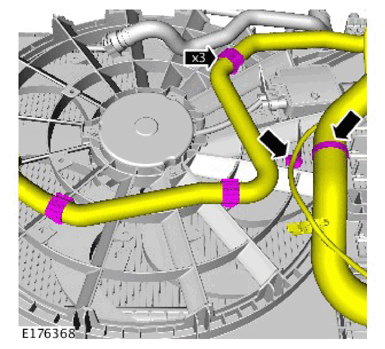

  8. G11307143
  9. G11307144

    Vehicles with automatic transmission

  10. G11307145

    All vehicles

  11. G11307146
  12. CAUTION: Be prepared to collect escaping coolant.

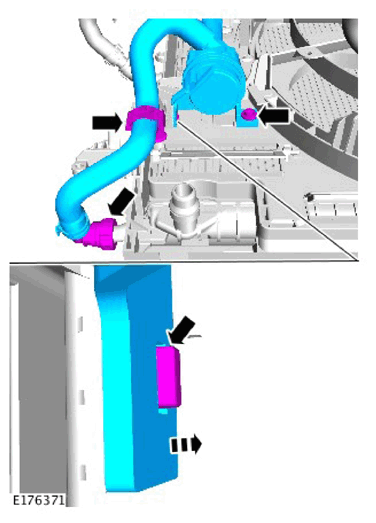

    G11307147

    Torque: 9 Nm

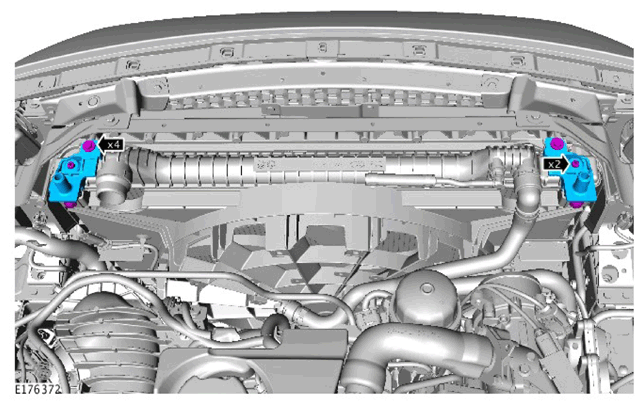

  13. G11307148

    Torque: 9 Nm

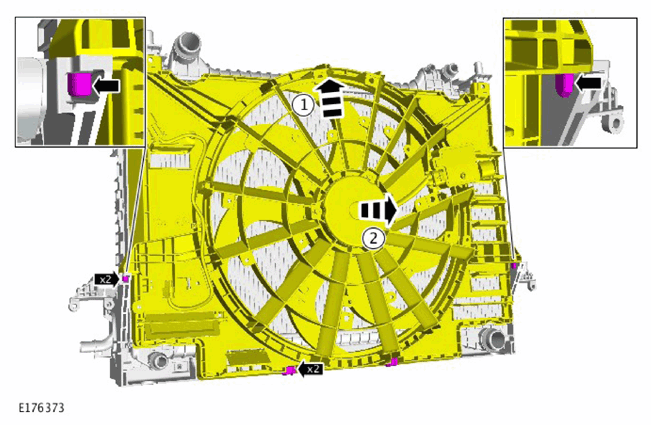

  14. G11307149
  15. CAUTION: Protect the radiator during this operation.
    NOTE: Do not disassemble further if the component is removed for access only.

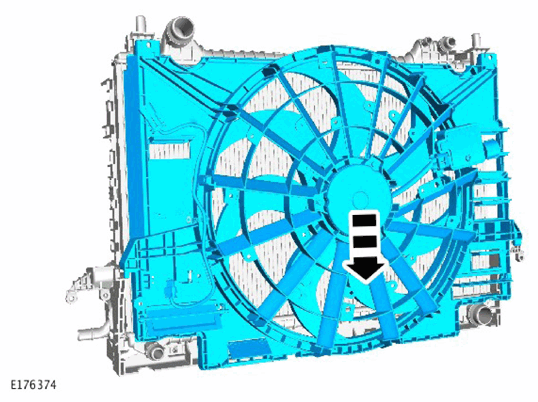

    G11307150
  16. G11307151
